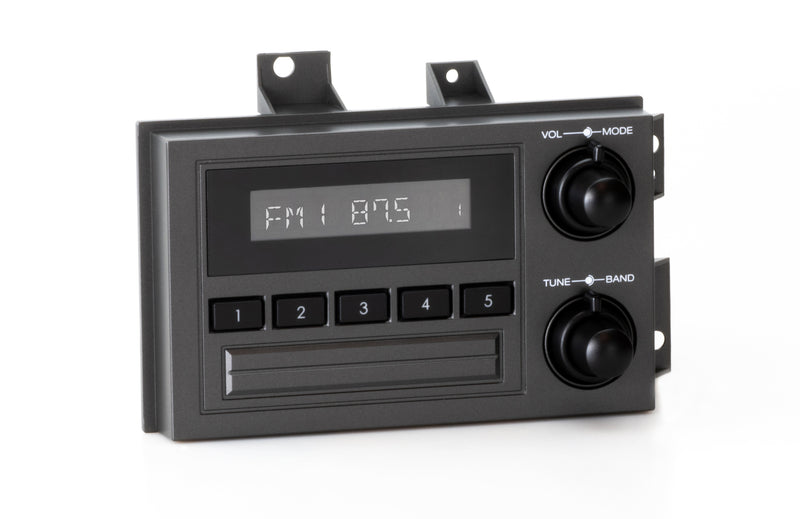

The Santa Cruz is the first and only radio ever designed for 1988-1994 GM trucks and features an OE-Style aesthetic to replace the factory stereo. The Santa Cruz replicates the original factory radio and adds all the features of a modern car stereo. The Santa Cruz installs seamlessly in the dash for a fully integrated look.
RetroSound®'s Santa Cruz is the first and only radio ever designed specifically for 1988-94 GM trucks and features an OE-style appearance for seamless integration into your truck. Santa Cruz is now available with your choice of 3 different feature sets.
Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.
Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. Please refer to product packaging for the most up to date country of origin. If you are not sure as to fitment, please contact us.
Motor 2B | Motor 4HD | ||
FM | |||
---|---|---|---|
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz | 87.5-107.9MHz | 87.5-107.9MHz |
Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
Usable Sensitivity | 12.5 dBf | 12.5 dBf | 12.5 dBf |
Selectivity | 75 dB @ 400kHz | 75 dB @ 400kHz | 75 dB @ 400kHz |
Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) | 62 dB (Stereo), 67 dB (mono) | 62 dB (Stereo), 67 dB (mono) |
Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) | 0.8% (stereo), 0.5% (mono) | 0.8% (stereo), 0.5% (mono) |
Separation | 32 dB @ 1kHz | 32 dB @ 1kHz | 32 dB @ 1kHz |
Frequency Response | 30-16,000 Hz | 30-16,000 Hz | 30-16,000 Hz |
AM (EU and US Tuning Capable) | |||
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz | 530-1710 kHz | 530-1710 kHz |
Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
General | |||
Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D | 3.96”W x 1.98”H x 4.30”D | 3.96”W x 1.98”H x 4.30”D |
Power Requirements | 11.5-14.4 volts | 10.5-14.4 volts | 10.5-14.4 volts |
Current Consumption (during operation) | Max. 15A | Max. 15A | Max. 15A |
Current Consumption (car off) | 3.5ma | 3.5ma | 3.5ma |
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 18x4 watts RMS 40x4 Max Power | 25x4 watts RMS 45x4 watts Max Power | 25x4 watts RMS 45x4 watts Max Power |
Output Impedance | 4-8ohm | 4-8ohm | 4ohm |
AUX 1 Input (AUX cable length, 8”) | >300 mV / 6 kΩ | - | >300 mV / 6 kΩ |
AUX 2 Input (aux cable length, 8”) | - | - | >300 mV / 6 kΩ |
USB 1 Input (USB cable length, 16”) | - | 5V (USB female input) | 5V (USB female input) |
USB 2 Input | - | - | 5V (USB female input) |
Low Level Output (4 channels) | - | 2.85 volts | 2.85 volts |
EROM | Non-Volatile Memory | Non-Volatile Memory | Non-Volatile Memory |
