Premium Ultra-thin Dash Speaker for 1968-69 Chevrolet Chevelle with No Factory Air
If you are shipping to AU, BE, BR, CH, CZ, DE, FR, GB, JP, NL, NO, NZ, RU, SE, or ZA use our Dealer Locator to find a dealer near you.

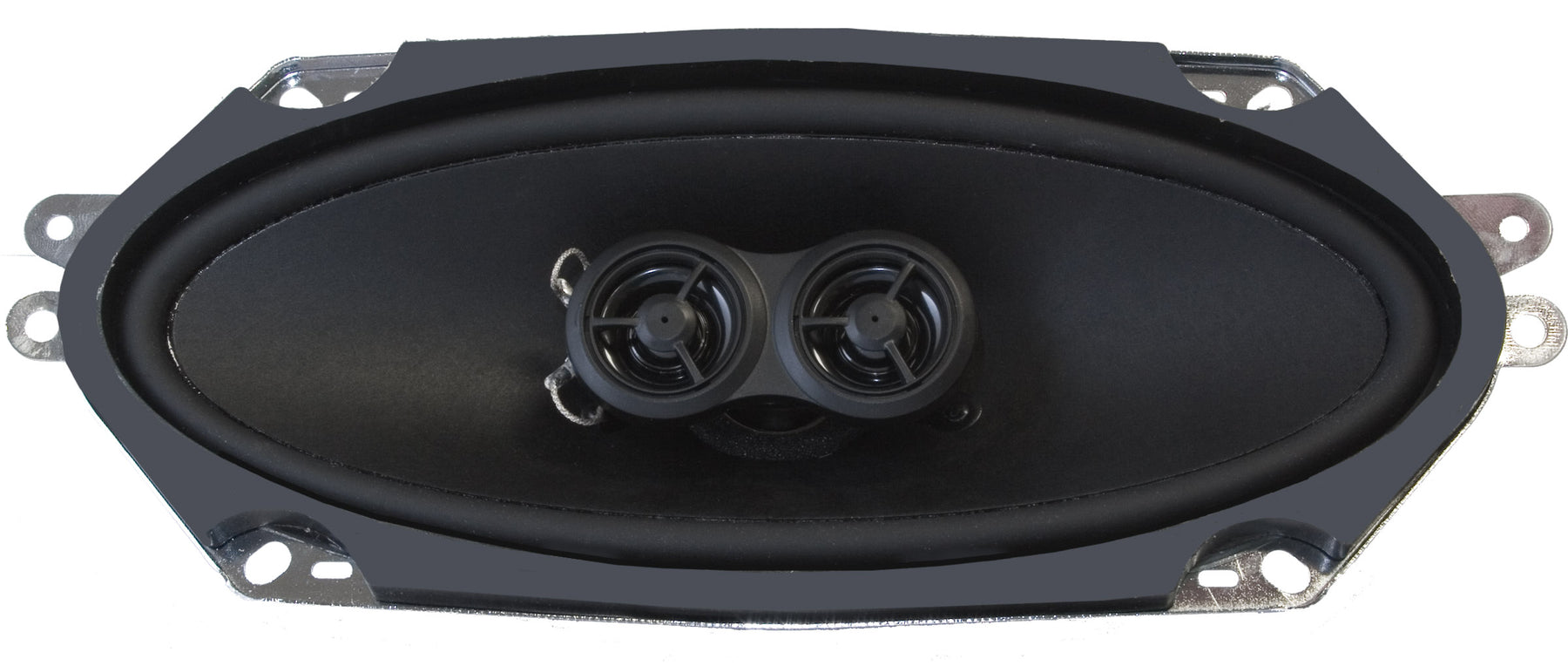

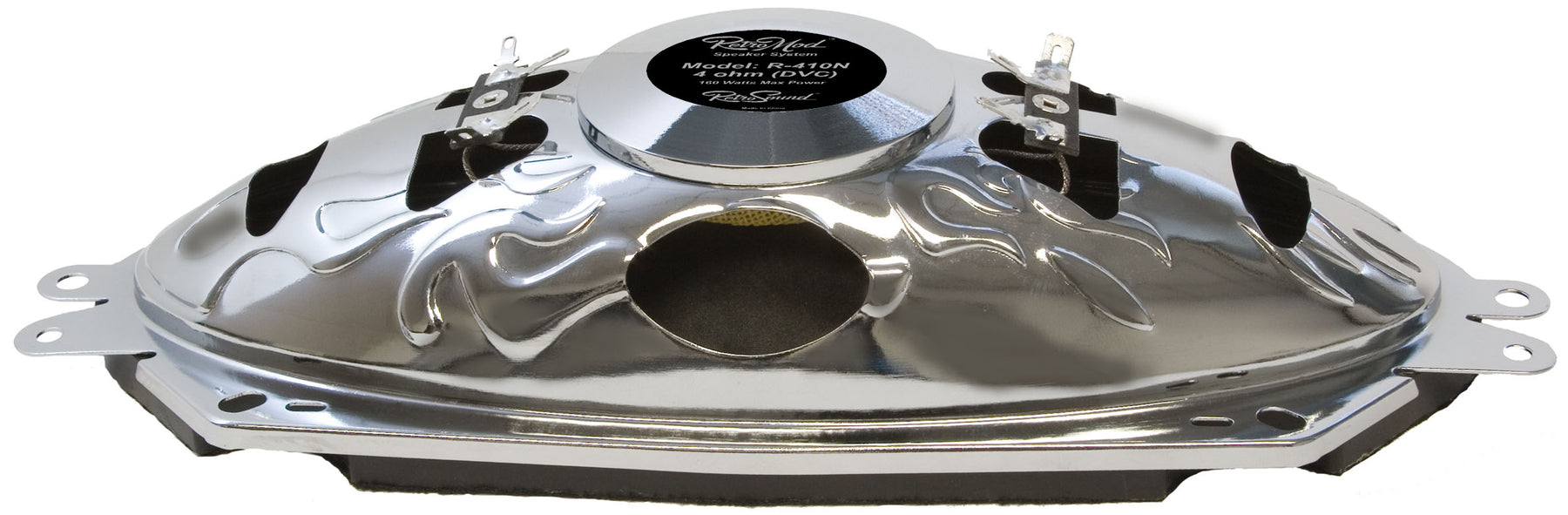

This RetroSound® Triax™ dual voice coil dash speaker gives you a stereo mix from your 1968-69 Chevrolet Chevelle's single dash speaker location. It uses a Neodymium magnet structure for high power handling in a slim-mount design. A Santoprene® surround delivers the most natural sound possible with no distortion. Dual mylar tweeters produce crisp, clear highs.
- 4x10 inch stereo dash replacement speaker
- Stereo mix from your single speaker location
- Neodymium magnet structure for ultra-thin design
- Santoprene® surround for smooth, natural sound
- Dual mylar tweeters for crisp, clear highs
- Pulp composite cone -- more musical than poly cones
- Dip-cut magnet for extended pole piece excursion
- 160 watts power handling

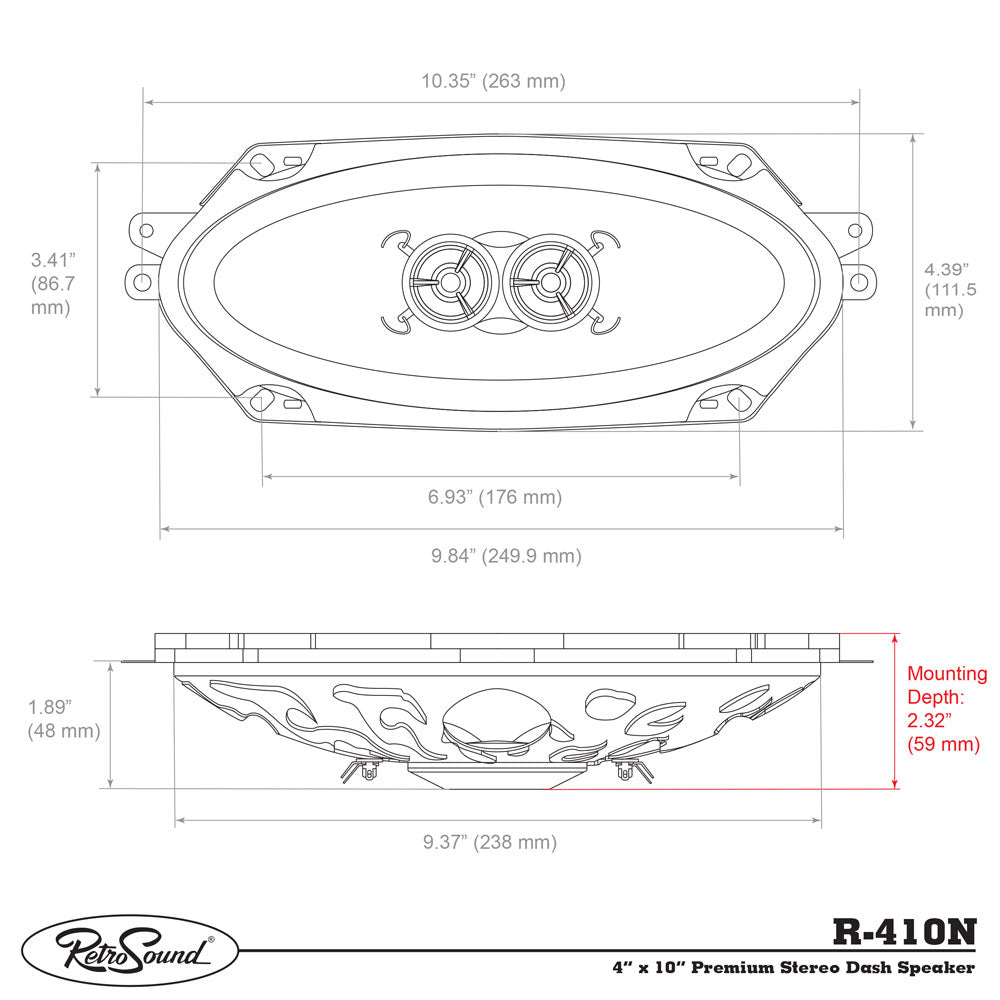

- Mounting depth is just 2.3-inches (59mm)
- Wiring kit included for use with OE factory radios rated at 8 to 10 ohms
For more information, see the user's manual, or browse our support page.
| MODEL | R-48N | R-410N | R-57N | R-507N | R-65N | R-69N |
| Nominal Diameter (inch) | 4x8 | 4x10 | 5x7 | 5x7 | 6.5 | 6x9 |
| Description | 3-Way | 3-Way | 3-Way | 3-Way | 2-Way | 3-Way |
| Nominal Impedance | 4+4ohm | 4+4ohm | 4+4ohm | 4+4ohm | 4+4ohm | 4+4ohm |
| Frequency Response (SPL@1w/1m) | 65Hz-21kHz | 43Hz-21kHz | 65Hz-21kHz | 65Hz-21kHz | 52Hz-21kHz | 40Hz-21kHz |
| Sensitivity | 87dB | 87dB | 87dB | 87dB | 87dB | 90dB |
| Power Handling (watts RMS/peak) | 60/120 | 90/160 | 60/100 | 40/80 | 50/100 | 100/200 |
| Speaker Grill | NO | NO | NO | NO | NO | NO |
| Mounting Depth (inch) | 2 | 2.3 | 1.9 | 2.2 | 2.36 | 2.23 |
| Mounting Depth (mm) | 52.5 | 59 | 50 | 56 | 60 | 59 |
