1991-96 Chevrolet Corsica Newport 1.5 DIN Direct-fit Radio

1991-96 Chevrolet Corsica Newport 1.5 DIN Direct-fit Radio-RetroSound


Part Number:

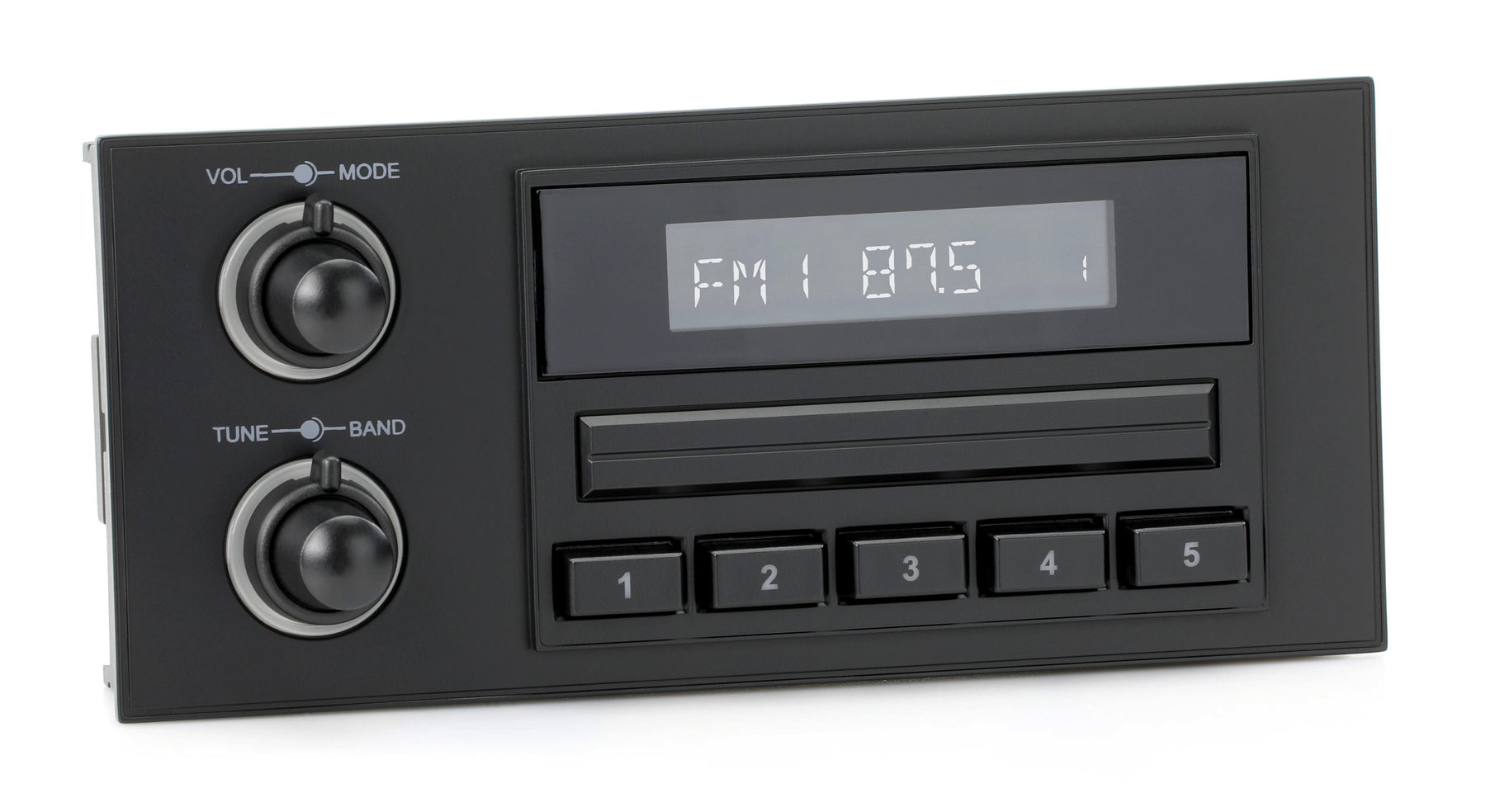

The RetroSound® Newport is a direct-fit replacement radio for your classic 1991-96 Chevrolet Corsica. Newport looks and fits like the original factory radio, but boasts the most modern technological features. An Apple Made-For-iPod®/iPhone® interface is built in, as is Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. Newport features a dual color (amber or green) color display and backlit buttons. Two USB ports for iPod®/iPhone® or flash drive (one on the front panel and one in the rear) plus two standard auxiliary inputs are included. Newport has a built-in 25 watts x 4 channel power amplifier as well as front and rear RCA pre-outs - plus subwoofer output - to add external amplifiers. It mounts seamlessly into your vehicle with the included mounting hardware and wiring harness. Until now, the only solution for your vehicle has been to install a standard DIN-sized radio - an installation that looks awkward and out of place. Now you can have the most modern features without sacrificing the looks of your classic car or truck.

  • Direct fit 1.5 DIN solution
  • Made for iPod®/iPhone® compatibility
  • Built in Bluetooth ® connectivity
  • Dual color (amber or green) display and backlighting
  • AM/FM RDS tuner with 30 presets
  • Two rear mounted USB ports for iPod®/iPhone® or USB flash drive
  • Two auxiliary inputs for portable devices
  • 25 watts x 4 channel RMS MOFSEST power amplifier
  • Dual RCA pre-outs plus subwoofer output for external amplifiers
  • Installation kit and wiring harness included
  • Selectable 12/24 hour clock
  • Works seamlessly with any of our external amplifiers


Motor 1 Motor 2 Motor 4 Motor 5 Motor 6 Motor 7
Compatible Faces Laguna Daytona
Detroit
Hermosa
Huntington
Monterey
Redondo
Santa Cruz
Wonder Bar
Daytona
Detroit
Huntington
Long Beach
Monterey
Redondo RS
Santa Cruz
Wonder Bar
Redondo RT Huntington
Monterey
Redondo RS
San Diego
Santa Cruz
Wonder Bar
Huntington
Monterey
Redondo RS
Santa Barbara
Santa Cruz
Wonder Bar
SiriusXM-Ready™ North America Only
Built-in DAB/DAB+ Tuner Outside North America Outside North America
Made for iPod® / iPhone® Included Included Included
Built-in Bluetooth® Included Included Included Included Included
USB Port for WMA/MP3 Music Files 1 2 2 2 1
Auxiliary Inputs 1 2 2 2 2 2
Display White 32,000 Color Display 32,000 Color Display 32,000 Color Display 32,000 Color Display 32,000 Color Display
Clock-Off Feature Included Included Included Included Included Included
AM/FM RDS Tuner with 30 Pre-sets Included Included Included Included
Selectable Tuner with USA/EU/Japan Frequencies Included Included Included Included Included Included
Power Output 18 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4
Front and Rear RCA Low Level Pre-amp Outputs Included Included Included Included Included
Subwoofer Output with Variable Crossover Included Included Included
Selectable 12/24 Hour Clock Included Included Included Included Included Included
Non-Volatile Memory Included Included

For more information, see the user's manual, or browse our support page.

FM

Tuning Range (EU and US tuning capable) with RDS 87.5-107.9MHz
Antenna Terminal External Antenna Connector
Usable Sensitivity 12.5 dBf
Selectivity 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (monaural)
Separation 32 dB @ 1kHz
Frequency Response 30-16,000 Hz

AM (EU and US Tuning Capable)

Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz
Antenna Terminal External Antenna Connector

General

Dimensions (radio face only) 8.10”W x 3.61” H x 1.29” D
Dimensions (radio body) 3.96”W x 1.98”H x 4.30"D
Power Requirements 10.5-14.4 volts
Current Consumption (during operation) Max. 15A
Current Consumption (car off) <3.5 mA
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 25x4 watts RMS 45x4 Max Power
Output Impedance 4-8ohm
Low Level Output (4 channels) 2.85 volts
AUX 1 Input (front panel) >300 mV / 6 kΩ
AUX 2 Input (Aux cable length, 8" >300 mV / 6 kΩ
USB 1 Input (front panel) 5V (USB female input)
USB 2 Input (rear, USB cable length, 40") 5V (USB female input)
