1983-87 Dodge 600 Newport 1.5 DIN Direct-fit Radio

1983-87 Dodge 600 Newport 1.5 DIN Direct-fit Radio - Retro Manufacturing
 - 1
Part Number:
$ 399.99

If you are shipping to AU, BR, CH, CZ, DE, FR, GB, JP, NL, NO, NZ, RU, SE, or ZA use our Dealer Locator to find a dealer near you.

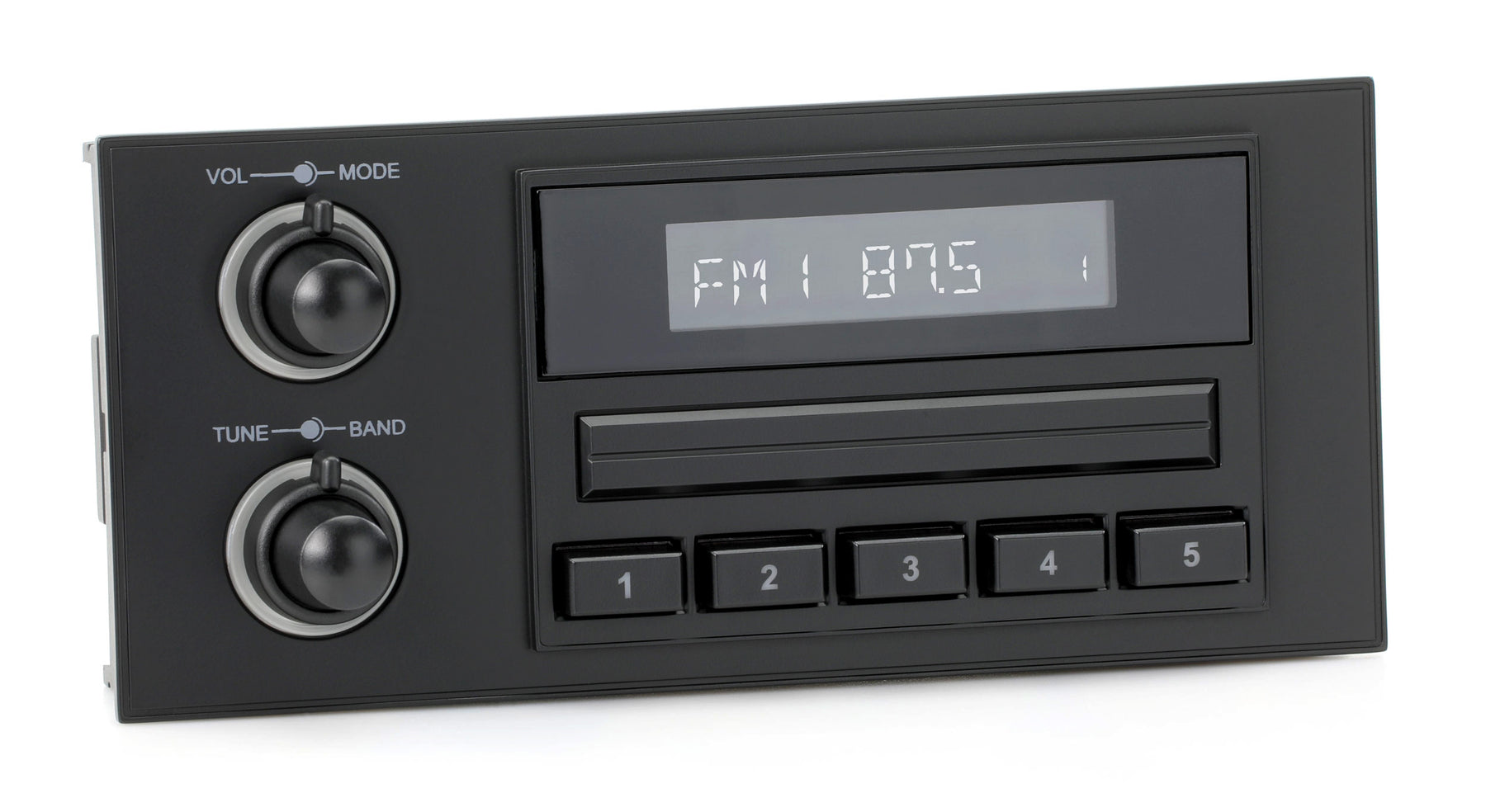

The RetroSound® Newport is a direct-fit replacement radio for your classic 1983-87 Dodge 600. Newport looks and fits like the original factory radio, but boasts the most modern technological features. An Apple Made-For-iPod®/iPhone® interface is built in, as is Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. Newport features a dual color (amber or green) color display and backlit buttons. Two USB ports for iPod®/iPhone® or flash drive (one on the front panel and one in the rear) plus two standard auxiliary inputs are included. Newport has a built-in 25 watts x 4 channel power amplifier as well as front and rear RCA pre-outs - plus subwoofer output - to add external amplifiers. It mounts seamlessly into your vehicle with the included mounting hardware and wiring harness. Until now, the only solution for your vehicle has been to install a standard DIN-sized radio - an installation that looks awkward and out of place. Now you can have the most modern features without sacrificing the looks of your classic car or truck.

  • Direct fit 1.5 DIN solution
  • Made for iPod®/iPhone® compatibility
  • Built in Bluetooth ® connectivity
  • Dual color (amber or green) display and backlighting
  • AM/FM RDS tuner with 30 presets
  • Two rear mounted USB ports for iPod®/iPhone® or USB flash drive
  • Two auxiliary inputs for portable devices
  • 25 watts x 4 channel RMS MOFSEST power amplifier
  • Dual RCA pre-outs plus subwoofer output for external amplifiers
  • Installation kit and wiring harness included
  • Selectable 12/24 hour clock
  • Works seamlessly with any of our external amplifiers


Apache1 Huntington2 Newport3
Santa Cruz4
Redondo5 Monterey6 Wonderbar7
MSRP $ 399.99 $ 399.99 $ 399.99 From $ 399.99 $ 429.99 $ 429.99
Motor Motor 3 Motor 4
Motor 6
Motor 4
Motor 5
Motor 6
Motor 4
Motor 6
Motor 4
Motor 6
SiriusXM-Ready™ North America Only North America Only North America Only
Built-in DAB/DAB+ Tuner Outside North America Outside North America Outside North America
Made for iPod® / iPhone®
Built-in Bluetooth®
USB Port for WMA/MP3 Music Files 2 2 2 2 2 2
Auxiliary Inputs 2 2 2 2 2 2
Display 32,000 Colors 32,000 Colors Amber/Green 32,000 Colors 32,000 Colors 32,000 Colors
Clock-Off Feature
AM/FM RDS Tuner with 30 Pre-sets
Selectable Tuner with USA/EU/Japan Frequencies
Power Output (RMS) 25 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4
Front and Rear RCA Low Level Pre-amp Outputs
Subwoofer Output with Variable Crossover
Non-Volatile Memory
Apache is made especially for 1954-59 Chevrolet and GM trucks and features no push-buttons.
Huntington is a direct-fit replacement for 1968-77 Ford Bronco and 1961-66 Ford trucks.
Newport is a 1.5 DIN radio made to fit later-model vehicles with a 7” x 3” factory opening.
Santa Cruz is a direct-fit replacement for 1988-94 Chevrolet and GM trucks.
Redondo is designed to work with vehicles with a divide in the dash fascia between the push-buttons and radio display and features an independenly adjustable push-button assembly. Redondo is available with standard radio shafts or thumb-rollers designed specifically for classic Mopars.
Monterey is a direct-fit solution for classic Ford and Mercury vehicles from the 1950s and 60s.
Wonderbar™ is a direct-fit solution for late 1940s-1960’s Chevrolet, Cadillac, Buick, Oldsmobile and GM vehicles and features a fully-functional Wonder Bar that seeks to the next available station and skips tracks during MP3 or Bluetooth® playback.

For more information, see the user's manual, or browse our support page.

FM

Tuning Range (EU and US tuning capable) with RDS 87.5-107.9MHz
Antenna Terminal External Antenna Connector
Usable Sensitivity 12.5 dBf
Selectivity 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (monaural)
Separation 32 dB @ 1kHz
Frequency Response 30-16,000 Hz

AM (EU and US Tuning Capable)

Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz
Antenna Terminal External Antenna Connector

General

Dimensions (radio face only) 8.10”W x 3.61” H x 1.29” D
Dimensions (radio body) 3.96”W x 1.98”H x 4.30"D
Power Requirements 10.5-14.4 volts
Current Consumption (during operation) Max. 15A
Current Consumption (car off) <3.5 mA
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 25x4 watts RMS 45x4 Max Power
Output Impedance 4-8ohm
Low Level Output (4 channels) 2.85 volts
AUX 1 Input (front panel) >300 mV / 6 kΩ
AUX 2 Input (Aux cable length, 8" >300 mV / 6 kΩ
USB 1 Input (front panel) 5V (USB female input)
USB 2 Input (rear, USB cable length, 40") 5V (USB female input)
