1979-82 Plymouth TC3 Newport 1.5 DIN Radio

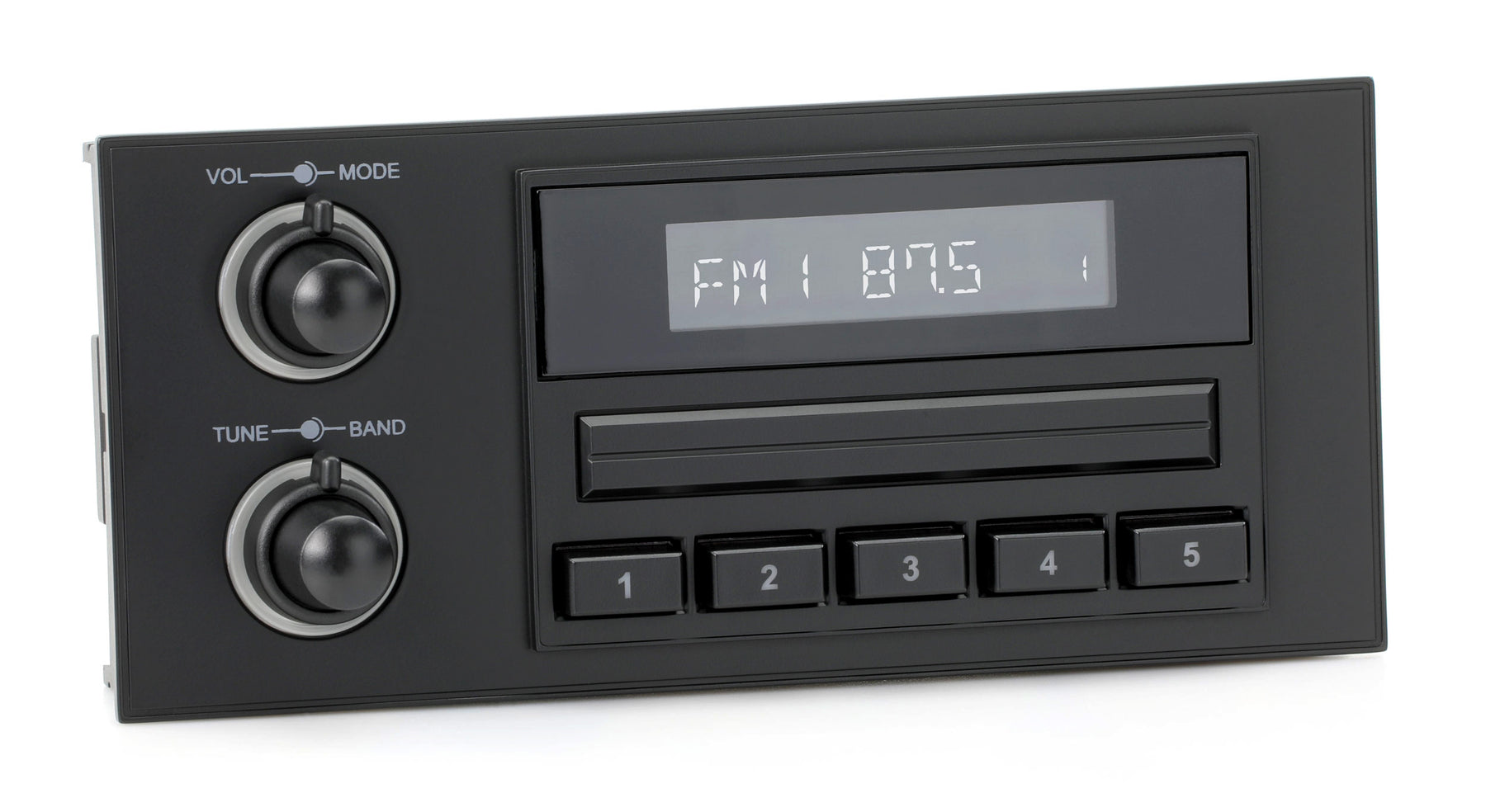

The RetroSound® Newport is the most authentic radio replacement for your classic 1979-82 Plymouth TC3 vehicle that came with a factory 1.5 DIN radio. Installing a standard DIN-sized radio in these vehicles looks awkward and out of place, leaving unsightly gaps in the dash. The Newport fills your full 1.5 DIN opening perfectly and looks period-correct giving you the best of both worlds: modern audio technology and a factory-like aesthetic. The Newport mounts seamlessly into your classic thanks to the included mounting kit and wiring harness. The Newport is now available with your choice of 3 different feature sets.
Motor 1A (Laguna) features an AM/FM tuner with 30 pre-sets, a built-in 275-watt amplifier (18 watts RMS/40 watts peak x 4 channels), as well as a rear auxiliary input for portable devices such as iPod® or portable satellite radio
- Includes mounting Kit and wiring harness (assembly required)
- AM/FM tuner with 30 presets
- Built-in 275-watt (peak power) Mosfet amplifier
- 18 watts RMS x 4 channels – TrueRating™
- Rear auxiliary input for portable devices
- 1-Year Warranty
Motor 2 (Hermosa) includes the features above but steps up to a 300-watt amplifier (25 watts RMS/45 watts peak x 4 channels) and adds built-in Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. A 32,000 color display allows you to match the interior and dash lighting of your classic car. The Motor 2 also includes a rear-mounted USB port for flash drives plus two standard auxiliary inputs and has front and rear RCA pre-outs that allow the ability to add external amplifiers.
- Built-in 300-watt (peak power) Mosfet amplifier
- 25 watts RMS x 4 channels – TrueRating™
- Two rear-mounted auxiliary inputs for portable devices
- Built-in Bluetooth® connectivity
- Bluetooth® microphone included
- Rear-mounted USB port for flash drives and other devices
- Dual RCA pre-outs for external amplifiers
- 32,000 color display
- 1-Year Warranty
Motor 4 (Long Beach) includes all of the Motor 2 (Hermosa) features listed above and is the only classic car stereo that is SiriusXM-Ready, allowing direct control of your SiriusXM Connect Vehicle Tuner. Additionally, the Motor 4 includes made for iPod®/iPhone® functionality to control your Apple devices when connected via Bluetooth® or USB. Additional features of the Motor 4 include:
- Made for iPod®/iPhone® (Compatibility with devices through streaming & USB)
- An additional USB port
- AM/FM RDS tuner with 30 pre-sets
- Dedicated subwoofer output
- 2-Year Warranty
- SiriusXM-Ready™ (SXV300V1 tuner sold separately)
- $70.00 rebate on the purchase of SXV300V1 SirusXM® tuner*
*SiriusXM promotion is valid for US/Canada residents only.
Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.
Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. If you are not sure as to fitment, please contact us.
Motor 1 Specifications
Motor 2 Specifications
Motor 4 Specifications
| FM | |
|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
| AM (EU and US Tuning Capable) | |
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
| General | |
| Dimensions (RetroRadio radio face & push-buttons only) | 3.5”W x 1.5” H x 1.05” D |
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 11.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 mA |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 18x4 watts RMS 40x4 Max Power |
| Output Impedance | 4-8ohm |
| AUX Input (AUX cable length, 8”) | >300 mV / 6 kΩ |
| FM | |
|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
| AM (EU and US Tuning Capable) | |
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
| General | |
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 mA |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 25x4 watts RMS 45x4 watts Max Power |
| Output Impedance | 4-8ohm |
| Low Level Output (4 channels) | 2.85 volts |
| EROM | Non-Volatile Memory |
| AUX 1 Input (aux cable length, 8”) | >300 mV / 6 kΩ |
| AUX 2 Input (aux cable length, 8”) | >300 mV / 6 kΩ |
| USB Input (USB cable length, 40”) | 5V (USB female input) |
| FM | |
|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
| AM (EU and US Tuning Capable) | |
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
| General | |
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 mA |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 25x4 watts RMS 45x4 watts Max Power |
| Output Impedance | 4ohm |
| Low Level Output (4 channels) | 2.85 volts |
| EROM | Non-Volatile Memory |
| AUX 1 Input | >300 mV / 6 kΩ |
| AUX 2 Input | >300 mV / 6 kΩ |
| USB 1 Input | 5V (USB female input) |
| USB 2 Input | 5V (USB female input) |
| Motor 1A | Motor 2 | Motor 4 | Motor 6 | |
|---|---|---|---|---|
| Compatible Faces |
Apache |
Daytona |
Daytona |
Daytona Denver Detroit Huntington Monterey Newport New York Redondo RS RetroRadio Face Santa Cruz Wonder Bar 1 & 3 |
| Selectable 12/24 Hour Clock |  |
|
|
|
| Selectable Tuner with USA/EU/Japan Frequencies | |
|
|
|
| Clock-Off Feature | |
|
|
|
| Built-in Bluetooth®Allows connection to Bluetooth devices. Using the radio as a hands-free device for phones and allowing playback from a device through the radio speaker system. |  |
|
|
|
| Front and Rear RCA Low Level Pre-amp Outputs | |
|
|
|
| Non-Volatile MemoryRadio has a memory chip that stores station presets, sound settings and other radio settings even if power is removed from the radio. This will not store time. | |
|
|
|
| Subwoofer Output with Variable Crossover | |
|
|
|
| Made for iPod® / iPhone®Reads directly from an Apple device. | |
|
|
|
| AM/FM RDS Tuner with 30 Pre-setsRDS (Radio Data Systems) Sends data from the radio station to the radio. Everything from auto setting your radios clock displaying station, artist and song information. Other RDS features include searching by music genres, Traffic warning and other information sent by a radio station. |
|
|
|
|
| USB Port for WMA/MP3 Music FilesUSB inputs allow playback from a flash drive with MP3/FLAC or WMA music files. Select models will interface with an Apple device. | |
1 | 2 | 2 |
| Auxiliary InputsUses a 3.5mm input style jack to play audio from an external device | 1 | 2 | 2 | 2 |
| DisplayRadio display color. Certain models have adjustable RGB display. | White | 32,000 Color Display | 32,000 Color Display | 32,000 Color Display |
| Power OutputPower rating. RMS is the power it can deliver continuously. | 18 watts x 4 | 25 watts x 4 | 25 watts x 4 | 25 watts x 4 |
| SiriusXM-Ready®SiriusXM® SXV300 Tuner Sold Separately | |
|
North America Only | |
| Built-in DAB/DAB+ Tuner | |
|
|
Outside North America |
