1974-78 Dodge Charger Newport 1.5 DIN Direct-fit radio

1974-78 Dodge Charger Newport 1.5 DIN Direct-fit radio - Retro Manufacturing
 - 1
Part Number:
$ 399.99

If you are shipping to AU, BR, CH, CZ, DE, FR, GB, JP, NL, NZ, RU, SE, or ZA use our Dealer Locator to find a dealer near you.

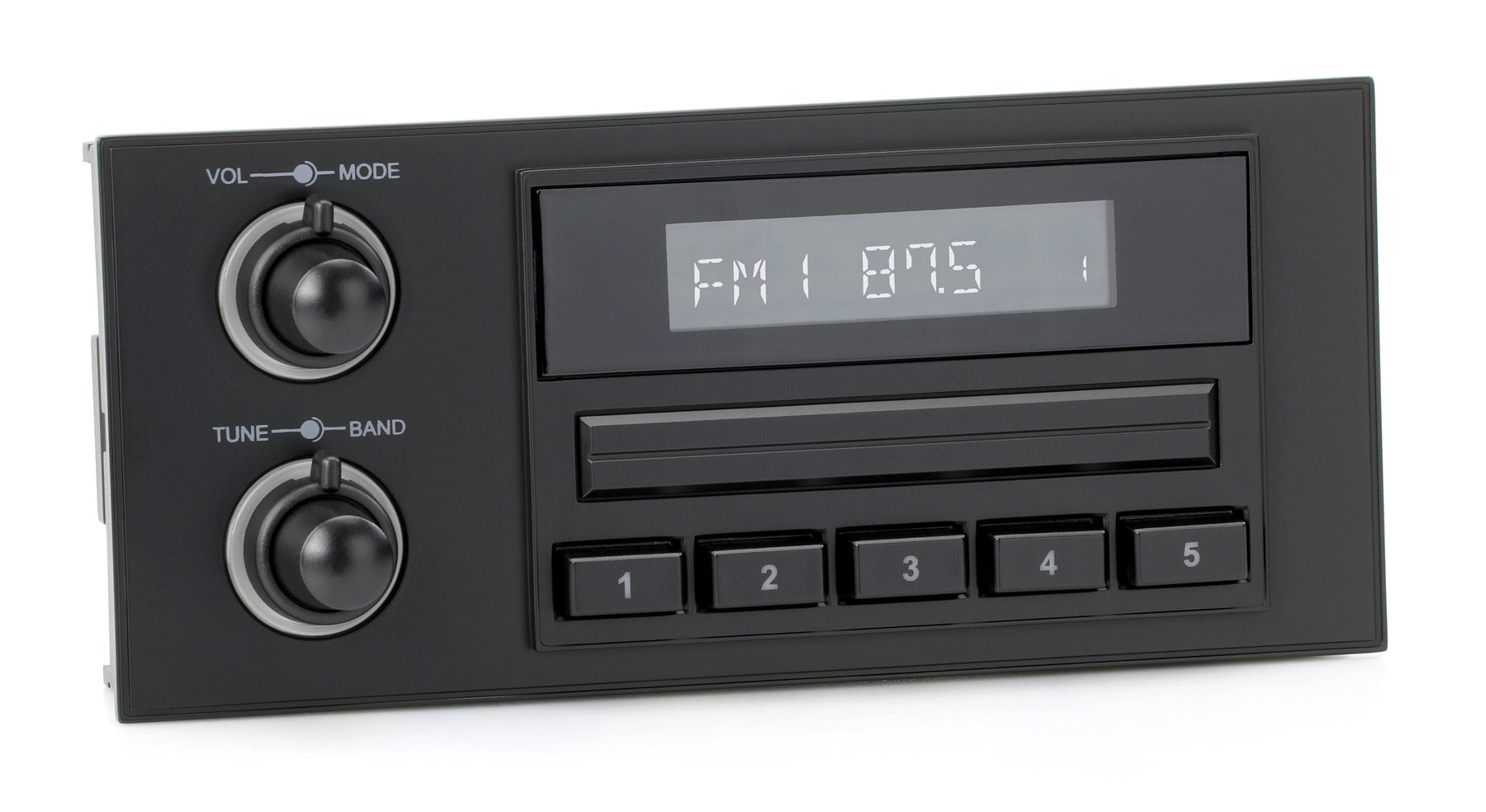

The RetroSound® Newport is a direct-fit replacement radio for your classic 1974-78 Dodge Charger. Newport looks and fits like the original factory radio, but boasts the most modern technological features. An Apple Made-For-iPod®/iPhone® interface is built in, as is Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. Newport features a dual color (amber or green) color display and backlit buttons. Two USB ports for iPod®/iPhone® or flash drive (one on the front panel and one in the rear) plus two standard auxiliary inputs are included. Newport has a built-in 25 watts x 4 channel power amplifier as well as front and rear RCA pre-outs - plus subwoofer output - to add external amplifiers. It mounts seamlessly into your vehicle with the included mounting hardware and wiring harness. Until now, the only solution for your vehicle has been to install a standard DIN-sized radio - an installation that looks awkward and out of place. Now you can have the most modern features without sacrificing the looks of your classic car or truck.

  • Direct fit 1.5 DIN solution
  • Made for iPod®/iPhone® compatibility
  • Built in Bluetooth ® connectivity
  • Dual color (amber or green) display and backlighting
  • AM/FM RDS tuner with 30 presets
  • Two rear mounted USB ports for iPod®/iPhone® or USB flash drive
  • Two auxiliary inputs for portable devices
  • 25 watts x 4 channel RMS MOFSEST power amplifier
  • Dual RCA pre-outs plus subwoofer output for external amplifiers
  • Installation kit and wiring harness included
  • Selectable 12/24 hour clock
  • Works seamlessly with any of our external amplifiers*
*If you need more power for your application, check out our Quadraphonic 4-channel amplifier.



Laguna Hermosa Apache1, Huntington2 Redondo3 Newport4 Long Beach
MSRP $ 199.99 $ 299.99 $ 399.99 $ 399.99 $ 399.99 $ 399.99
SiriusXM-Ready™ Huntington: Included
Made for iPod® / iPhone® Compatability
Built-in Bluetooth®
USB Port for WMA/MP3 Music Files 1 2 2 2 2
Auxiliary Inputs for Portable Devices 1 2 2 2 2 2
Display White White/Green 32,000 Colors 32,000 Colors Amber/Green 32,000 Colors
AM/FM RDS Tuner with 30 Pre-sets No RDS No RDS
Selectable Tuner with USA/EU/Japan Frequencies
Power Output 18W x 4Ch. 25W x 4Ch. 25W x 4Ch. 25W x 4Ch. 25W x 4Ch. 25W x 4Ch.
Front and Rear RCA Low Level Pre-amp Outputs
Subwoofer Output with Variable Crossover
Selectable 12/24 Hour Clock
Apache Radio made especially for 1954-59 Chevy/GM Trucks.
Huntington radio is a direct-fit replacement for 1968-77 Ford Bronco and 1961-66 Ford Trucks, and is also ideal for hot rods.
Redondo radio made for vehicles with dash fascia separating radio dial from push-buttons, such as mid-60's to mid-70's Mopar, and mid-60's Ford vehicles with deluxe dash. Available with standard knobs or thumb-roller controls.
Newport 1.5 DIN radio made especially for GM, Ford, and Mopar vehicles with 7 inch by 3 inch factory opening.

For more information, see the user's manual, or browse our support page.

FM

Tuning Range (EU and US tuning capable) with RDS 87.5-107.9MHz
Antenna Terminal External Antenna Connector
Usable Sensitivity 12.5 dBf
Selectivity 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (monaural)
Separation 32 dB @ 1kHz
Frequency Response 30-16,000 Hz

AM (EU and US Tuning Capable)

Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz
Antenna Terminal External Antenna Connector

General

Dimensions (radio face only) 8.10”W x 3.61” H x 1.29” D
Dimensions (radio body) 3.96”W x 1.98”H x 4.30"D
Power Requirements 10.5-14.4 volts
Current Consumption (during operation) Max. 15A
Current Consumption (car off) <3.5 mA
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 25x4 watts RMS 45x4 Max Power
Output Impedance 4-8ohm
Low Level Output (4 channels) 2.85 volts
AUX 1 Input (front panel) >300 mV / 6 kΩ
AUX 2 Input (Aux cable length, 8" >300 mV / 6 kΩ
USB 1 Input (front panel) 5V (USB female input)
USB 2 Input (rear, USB cable length, 40") 5V (USB female input)
