1969 Dodge Charger Daytona Redondo RT Thumb-Roller Radio

1969 Dodge Charger Daytona Redondo RT Thumb-Roller Radio
1970 Dodge Charger Daytona Redondo RT Thumb-Roller Radio
1971 Dodge Charger Daytona Redondo RT Thumb-Roller Radio
1969 Dodge Charger Daytona Redondo RT Thumb-Roller Radio1969 Dodge Charger Daytona Redondo RT Thumb-Roller Radio
1970 Dodge Charger Daytona Redondo RT Thumb-Roller Radio1970 Dodge Charger Daytona Redondo RT Thumb-Roller Radio
1971 Dodge Charger Daytona Redondo RT Thumb-Roller Radio1971 Dodge Charger Daytona Redondo RT Thumb-Roller Radio

1969 Dodge Charger Daytona Redondo RT Thumb-Roller Radio

Choose a Pushbutton Color
Part Number: RED-M4F-RT-B-280

Radio Features

  • AM/FM Tuner with 30 Presets
  • 1 Rear AUX (3.5mm) Input for Portable Devices
  • 1-Year Warranty
  • AM/FM Tuner with 30 Presets
  • Built-in Bluetooth® Connectivity
  • 2 AUX (3.5mm) Inputs for Portable Devices
  • 1 Rear-mounted USB Port
  • 1-Year Warranty
  • AM/FM RDS Tuner with 30 Presets
  • Built-in Bluetooth® Connectivity
  • 2 Rear USB Ports
  • Dedicated Subwoofer Output
  • SiriusXM-Ready™ (SXV300 tuner sold separately)
  • 2-Year Warranty
/
  • In stock, ready to ship
Shipping calculated at checkout.

Continue shopping for your vehicle

This listing is for the thumb-roller version of Redondo. If your vehicle came with standard shafts and knobs, you will need Redondo-RS.

Disclaimer - Unit is designed to fit AM/FM factory radio bezel. Will not fit optional 8-track radio bezel.

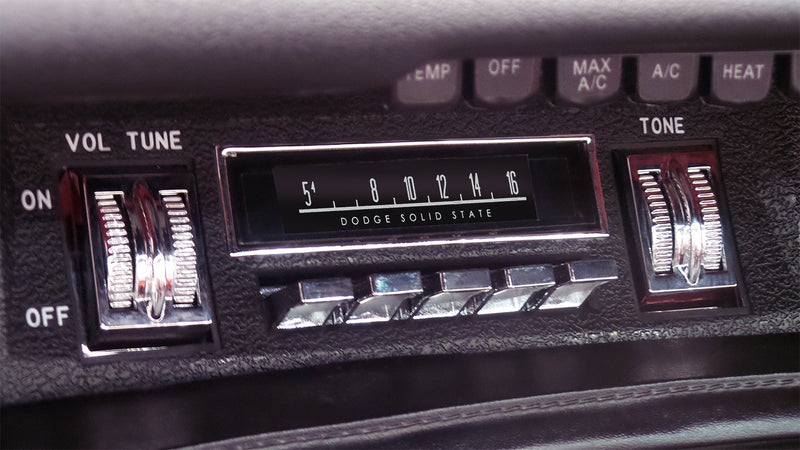

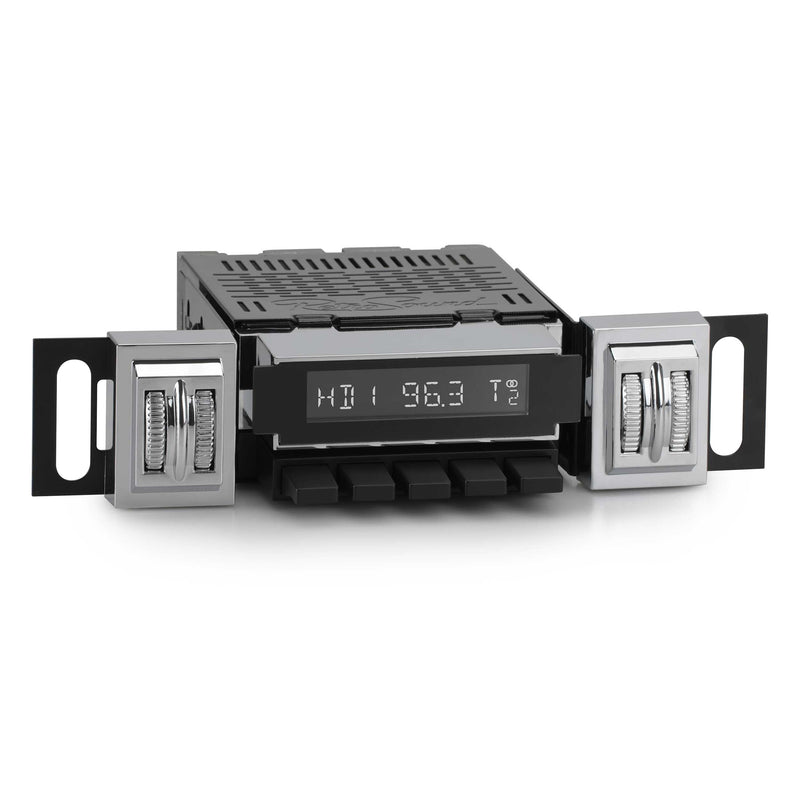

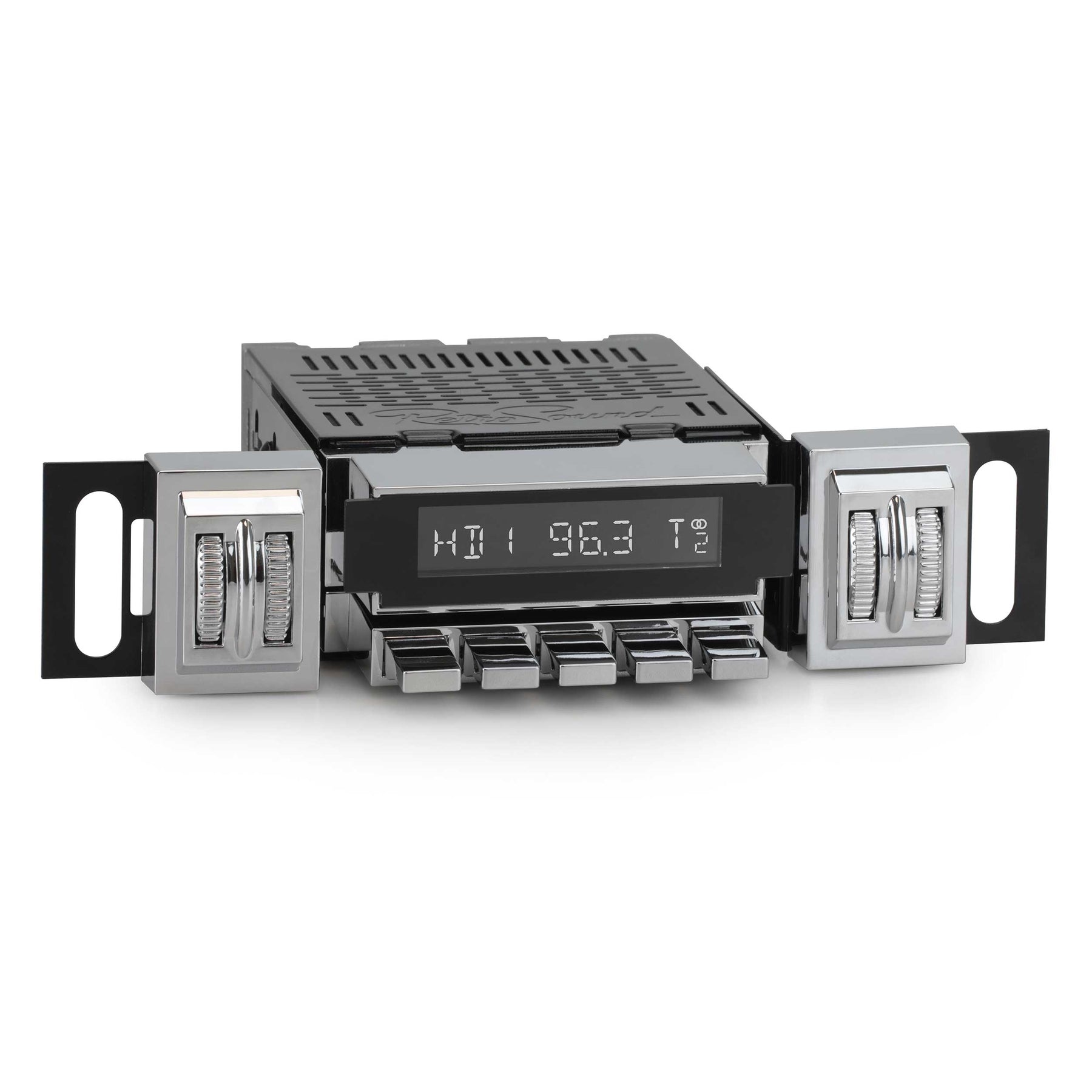

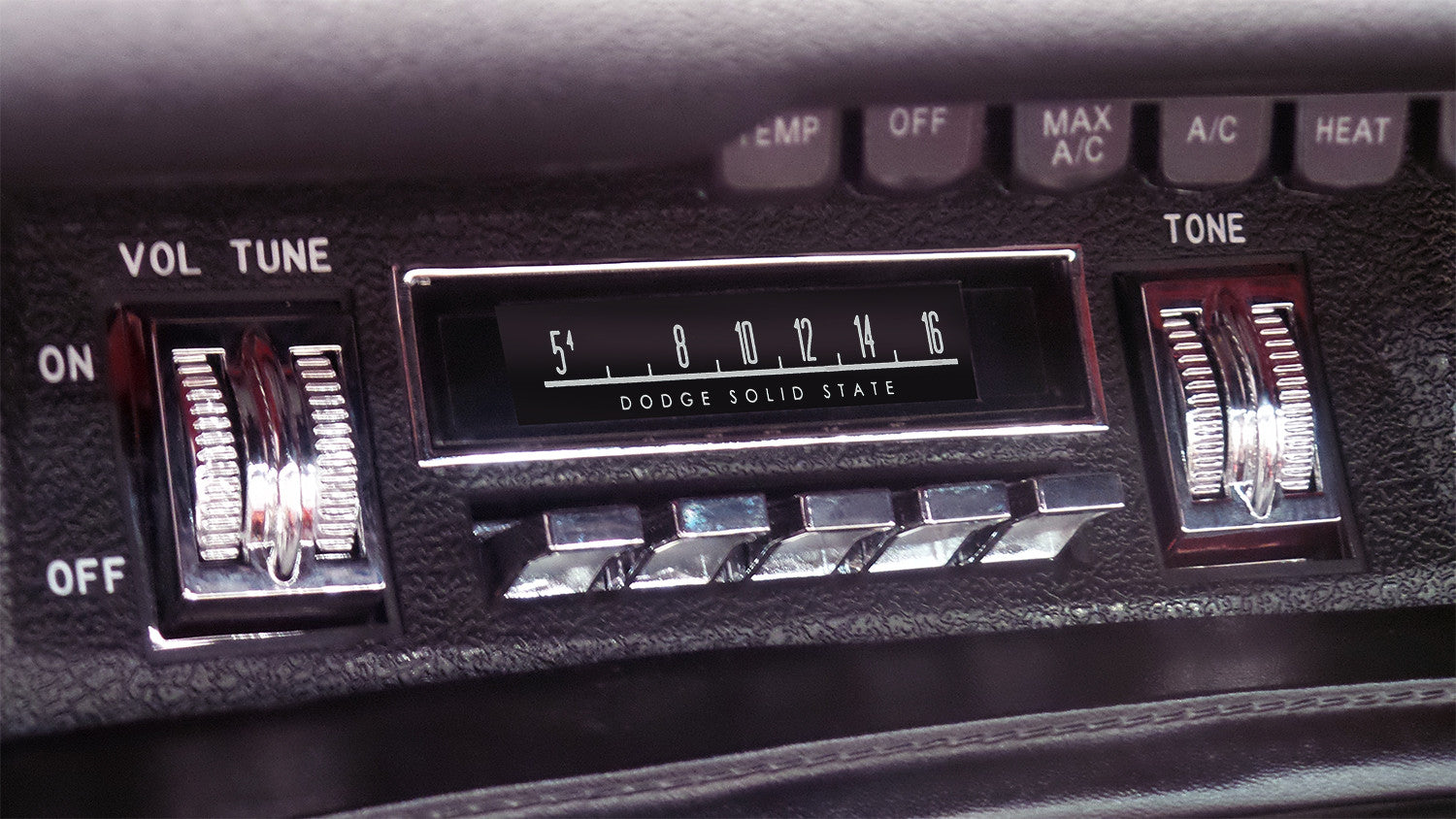

    RetroSound®'s Redondo-RT is the most technologically-advanced radio ever made for your classic 1969 Dodge Charger Daytona. With classic Mopar style thumb-roller controls, Redondo looks like the original factory radio, but includes all the features of a modern car stereo. The Redondo has separate radio display and push-button assemblies that are independently adjustable thanks to RetroSound's patented InfiniMount system. The compact size installs easily and discreetly behind the dash for a fully integrated look. This is the most technologically advanced radio ever produced for vintage Mopar vehicles.

    RetroSound®'s Redondo-RT includes a 300-watt built-in amplifier (25 watts RMS/45 watts peak x 4 channels) and features built-in Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. A 32,000 color display allows you to match the interior and dash lighting of your hot rod. Redondo-RT includes two rear-mounted USB ports for flash drives plus two standard auxiliary inputs and has front and rear RCA pre-outs that allow the ability to add external amplifiers.

    • HD Radio® Technology
    • SiriusXM-Ready™ (SXV300 tuner required)
    • Made for iPod®/iPhone® (Compatibility with devices through streaming & USB)
    • Built-in Bluetooth® connectivity
    • 32,000 color display
    • AM/FM RDS tuner with 30 presets
    • Two rear-mounted USB ports for flash drives
    • Two auxiliary inputs for portable devices
    • Built-in 300-watt amplifier (TrueRating™: 25 watts RMS/45 watts peak x 4 channels)
    • Dual RCA pre-outs for external amplifiers
    • Dedicated subwoofer output
    • 2-Year Warranty
    • Radio body can be mounted remotely with optional extension cable
    • Works seamlessly with any of our external amplifiers

    $60 SXM Service Card - when you purchase and activate your RetroSound® Radio with SXV300V1 SirusXM® Tuner
    Plan options:

    • 12/$99 – 12 months of the Platinum Plan for $8.25/month
    • 12/$60 – 12 months of the Music & Entertainment Plan for$5/month

    Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.

    Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. If you are not sure as to fitment, please contact us.

  Motor 1A Motor 2A Motor 4
FM
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS 87.5-107.9MHz 87.5-107.9MHz 87.5-107.9MHz
Antenna Terminal External Antenna Connector External Antenna Connector External Antenna Connector
Usable Sensitivity 12.5 dBf 12.5 dBf 12.5 dBf
Selectivity 75 dB @ 400kHz 75 dB @ 400kHz 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono) 62 dB (Stereo), 67 dB (mono) 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (mono) 0.8% (stereo), 0.5% (mono) 0.8% (stereo), 0.5% (mono)
Separation 32 dB @ 1kHz 32 dB @ 1kHz 32 dB @ 1kHz
Frequency Response 30-16,000 Hz 30-16,000 Hz 30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz 530-1710 kHz 530-1710 kHz
Antenna Terminal External Antenna Connector External Antenna Connector External Antenna Connector
General
Dimensions (radio face & push-buttons only) 3.5”W x 1.5” H x 1.05” D - -
Dimensions (radio body) 3.96”W x 1.98”H x 4.30”D 3.96”W x 1.98”H x 4.30”D 3.96”W x 1.98”H x 4.30”D
Power Requirements 11.5-14.4 volts 10.5-14.4 volts 10.5-14.4 volts
Current Consumption (during operation) Max. 15A Max. 15A Max. 15A
Current Consumption (car off)
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 18x4 watts RMS 40x4 Max Power 25x4 watts RMS 45x4 watts Max Power 25x4 watts RMS 45x4 watts Max Power
Output Impedance 4-8ohm 4-8ohm 4ohm
AUX 1 Input (AUX cable length, 8”) >300 mV / 6 kΩ >300 mV / 6 kΩ >300 mV / 6 kΩ
AUX 2 Input (aux cable length, 8”) - >300 mV / 6 kΩ >300 mV / 6 kΩ
USB 1 Input (USB cable length, 40”) - 5V (USB female input) 5V (USB female input)
USB 2 Input - - 5V (USB female input)
Low Level Output (4 channels) - 2.85 volts 2.85 volts
EROM - Non-Volatile Memory Non-Volatile Memory
  Motor 1A Motor 2A Motor 4HD Motor 6
Compatible Faces

Apache
Daytona
Denver
Detroit
Huntington
Monterey
Newport
New York
Redondo RS
RetroRadio Faces
Santa Cruz
Wonder Bar 1 & 3

Daytona
Denver
Detroit
Huntington
Monterey
Newport
New York
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3

Daytona
Denver
Detroit
Huntington
Monterey
Newport
New York
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3

 Daytona
Denver
Detroit
Huntington
Monterey
Newport
New York
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3
Selectable 12/24 Hour Clock Included Included Included Included
Selectable Tuner with USA/EU/Japan Frequencies Included Included Included Included
Clock-Off Feature Included Included Included Included
Built-in Bluetooth®Allows connection to Bluetooth devices. Using the radio as a hands-free device for phones and allowing playback from a device through the radio speaker system. No Included Included Included
Front and Rear RCA Low Level Pre-amp Outputs No Included Included Included
Non-Volatile MemoryRadio has a memory chip that stores station presets, sound settings and other radio settings even if power is removed from the radio. This will not store time. Included No Included Included
Subwoofer Output with Variable Crossover No No Included Included
Made for iPod® / iPhone®Reads directly from an Apple device. No No Included Included
AM/FM RDS Tuner with 30 Pre-setsRDS (Radio Data Systems) Sends data from the radio station to the radio. Everything from auto setting your radios clock displaying station, artist and song information. Other RDS features include searching by music genres, Traffic warning and other information sent by a radio station. No  No  Included Included
USB Port for WMA/MP3 Music FilesUSB inputs allow playback from a flash drive with MP3/FLAC or WMA music files. Select models will interface with an Apple device. No 1 2 2
Auxiliary InputsUses a 3.5mm input style jack to play audio from an external device 1 2 2 2
DisplayRadio display color. Certain models have adjustable RGB display. White 32,000 Color Display 32,000 Color Display 32,000 Color Display
Power OutputPower rating. RMS is the power it can deliver continuously. 18 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4
SiriusXM-Ready®SiriusXM® SXV300 Tuner Sold Separately No No North America Only No
Built-in DAB/DAB+ Tuner No No No Outside North America
