RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
Warning: This Radio is intended for Cut or Altered Dashboards ONLY.
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood

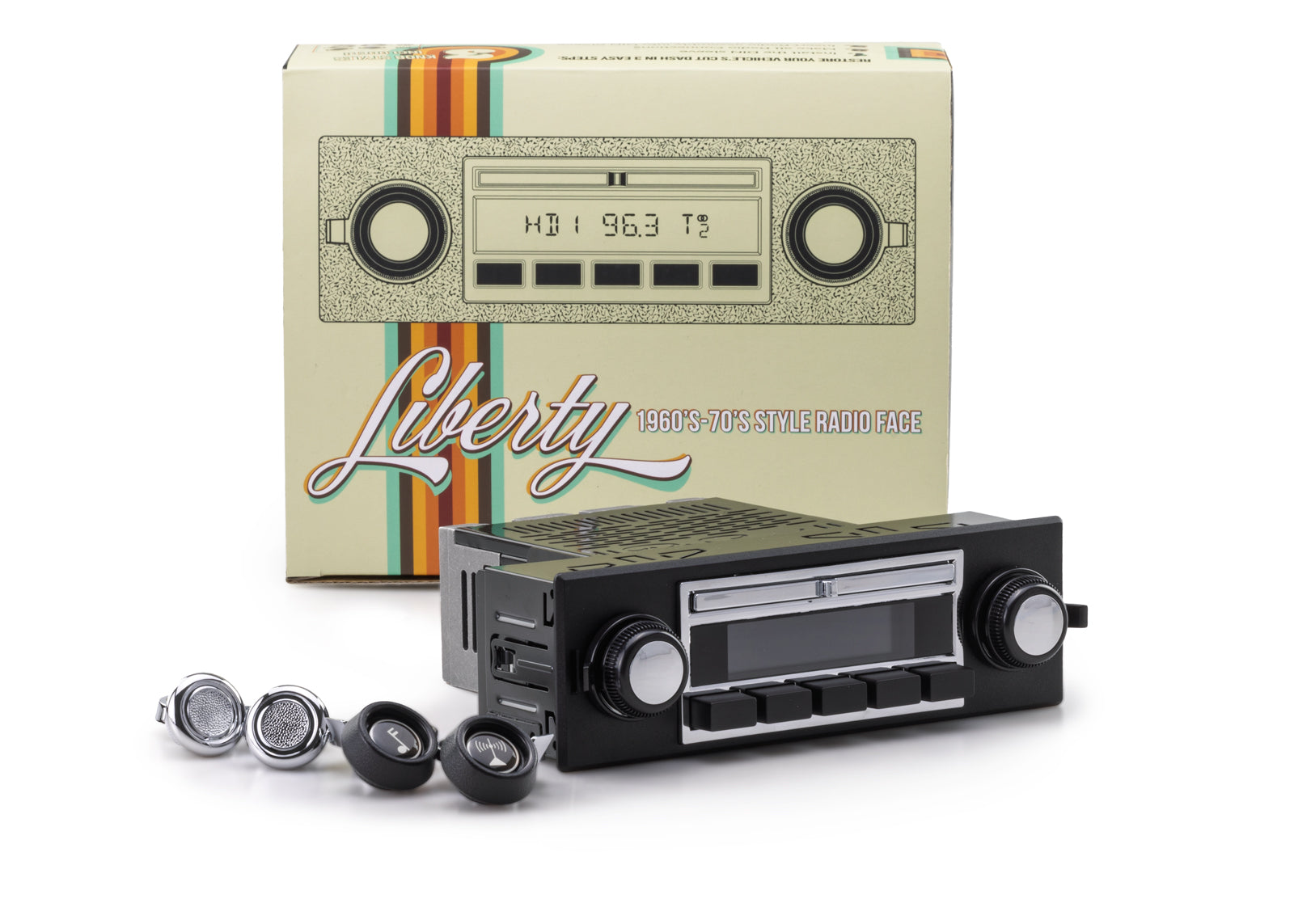

RetroSound DIN Solutions Liberty knob style selection
RetroSound Liberty Single DIN Radio for 1969-1972 Chevrolet Brookwood
Bring your classic car or truck into the modern era without sacrificing its vintage charm.

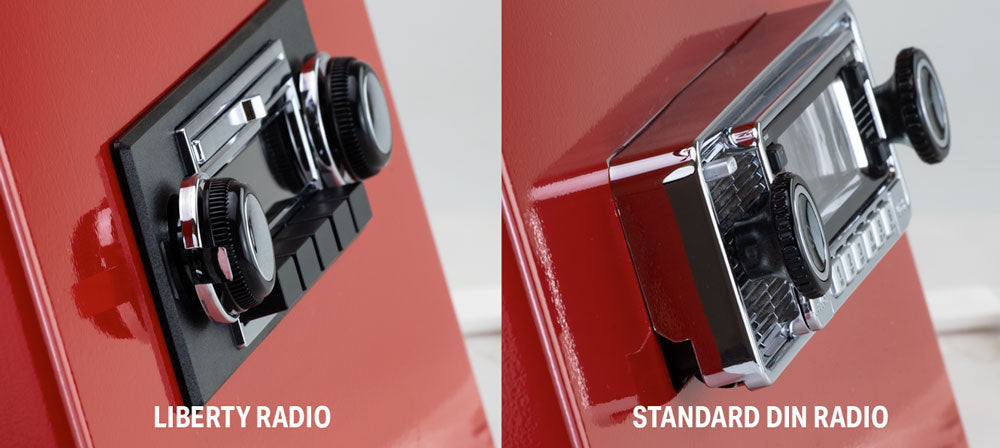

The RetroSound DIN Solution Liberty Radio (patents pending) is the ultimate single DIN stereo for vintage vehicles with cut or modified dashes, including Ford, Chevy, and GM models. Its ultra-slim profile provides a seamless fit, preserving your car's classic interior while integrating cutting-edge technology.
Enjoy Bluetooth connectivity, USB ports, and wireless audio streaming—modern conveniences designed to enhance your driving experience without compromising the period-correct look. With simple installation and three knob combinations that reflect classic car eras, the Liberty Radio is the perfect solution for restoring your vehicle's sound system.
Whether you're repairing a damaged dash or upgrading your sound system, the Liberty Radio effortlessly merges modern performance with classic aesthetics.
Motor 4HD
HD Radio + SiriusXM-Ready + RetroSound Radio App compatible
Latest update: Motor 4HD now supports the RetroSound Radio App.
The Motor 4HD feature set adds HD Radio® technology and SiriusXM-Ready® capability (SXV300V1 tuner sold separately), along with a built-in 300-watt (peak power) MOSFET amplifier (25 watts RMS x 4 channels). It includes built-in Bluetooth® for hands-free calling and high-quality audio streaming, two rear-mounted USB ports for music playback and 2.1-amp charging, dual RCA pre-outs, and a dedicated subwoofer output. The 32,000-color display is adjustable to match your vehicle’s gauge lighting.
- HD Radio® Technology
- SiriusXM-Ready® (SXV300V1 tuner sold separately)
- RetroSound Radio App compatible
- Built-in Bluetooth® (Version 5.0)
- Includes Bluetooth® microphone for hands-free calls
- AM/FM RDS tuner with 30 presets
- Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
- Auxiliary input for portable devices
- Two USB ports for flash drives and devices
- 1-amp device charging via USB
- Built-in 300-watt (peak power) MOSFET amplifier
- 25 watts RMS x 4 channels (TrueRating™)
- Dual RCA pre-outs for external amplifiers
- Dedicated subwoofer output
- Adjustable color display
- Non-volatile memory
- 2-Year Warranty
- Assembly is required
SiriusXM Service Card: $60 SXM Service Card available when you purchase and activate your RetroSound® Radio with SXV300V1 SiriusXM® Tuner.
Plan options: 12/$99 – 12 months of the Platinum Plan for $8.25/month | 12/$60 – 12 months of the Music & Entertainment Plan for $5/month
Plan options: 12/$99 – 12 months of the Platinum Plan for $8.25/month | 12/$60 – 12 months of the Music & Entertainment Plan for $5/month
Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. Please refer to product packaging for the most up to date country of origin. If you are not sure as to fitment, please contact us.
RetroSound radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.
| Motor 1B | Motor 2B | Motor 4HD | |
| FM | |||
|---|---|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5–107.9 MHz | 87.5–107.9 MHz | 87.5–107.9 MHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf | 12.5 dBf | 12.5 dBf |
| Selectivity | 75 dB @ 400 kHz | 75 dB @ 400 kHz | 75 dB @ 400 kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (Mono) | 62 dB (Stereo), 67 dB (Mono) | 62 dB (Stereo), 67 dB (Mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (Stereo), 0.5% (Mono) | 0.8% (Stereo), 0.5% (Mono) | 0.8% (Stereo), 0.5% (Mono) |
| Separation | 32 dB @ 1 kHz | 32 dB @ 1 kHz | 32 dB @ 1 kHz |
| Frequency Response | 30–16,000 Hz | 30–16,000 Hz | 30–16,000 Hz |
| AM (EU and US Tuning Capable) | |||
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530–1710 kHz | 530–1710 kHz | 530–1710 kHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| General | |||
| Dimensions (radio body) | 3.96″W × 1.98″H × 4.30″D | 3.96″W × 1.98″H × 4.30″D | 3.96″W × 1.98″H × 4.30″D |
| Power Requirements | 11.5–14.4 V | 10.5–14.4 V | 10.5–14.4 V |
| Current Consumption (during operation) | Max. 15A | Max. 15A | Max. 15A |
| Current Consumption (car off) | 3.5 mA | 3.5 mA | 3.5 mA |
| Output Power (@ 14.4V @ 4Ω @ 1% THD) | 18×4W RMS / 40×4W Max | 25×4W RMS / 45×4W Max | 25×4W RMS / 45×4W Max |
| Output Impedance | 4–8 Ω | 4–8 Ω | 4 Ω |
| AUX 1 Input (cable length 8") | >300 mV / 6 kΩ | >300 mV / 6 kΩ | |
| AUX 2 Input (cable length 8") | >300 mV / 6 kΩ | ||
| USB 1 Input (cable length 16") | 5V (USB female input) | 5V (USB female input) | |
| USB 2 Input | 5V (USB female input) | ||
| Low Level Output (4 channels) | 2.85 V | 2.85 V | |
| EROM | Non-Volatile Memory | Non-Volatile Memory | Non-Volatile Memory |
