RetroSound® Wonder Bar Radio®
Browse Radios
1949-56 Cadillac Series 62 Wonder Bar® Radio
SiriusXM-Ready™ • Apple • Bluetooth • USB • AUX • AM/FM
1955-56 Chevrolet OneFifty Wonder Bar® Radio
SiriusXM-Ready™ • Apple • Bluetooth • USB • AUX • AM/FM

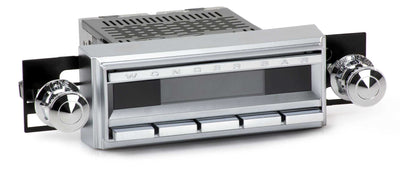

The revolutionary Wonder Bar® radio brings modern technology to your classic car that came with a factory installed Wonder Bar® radio.

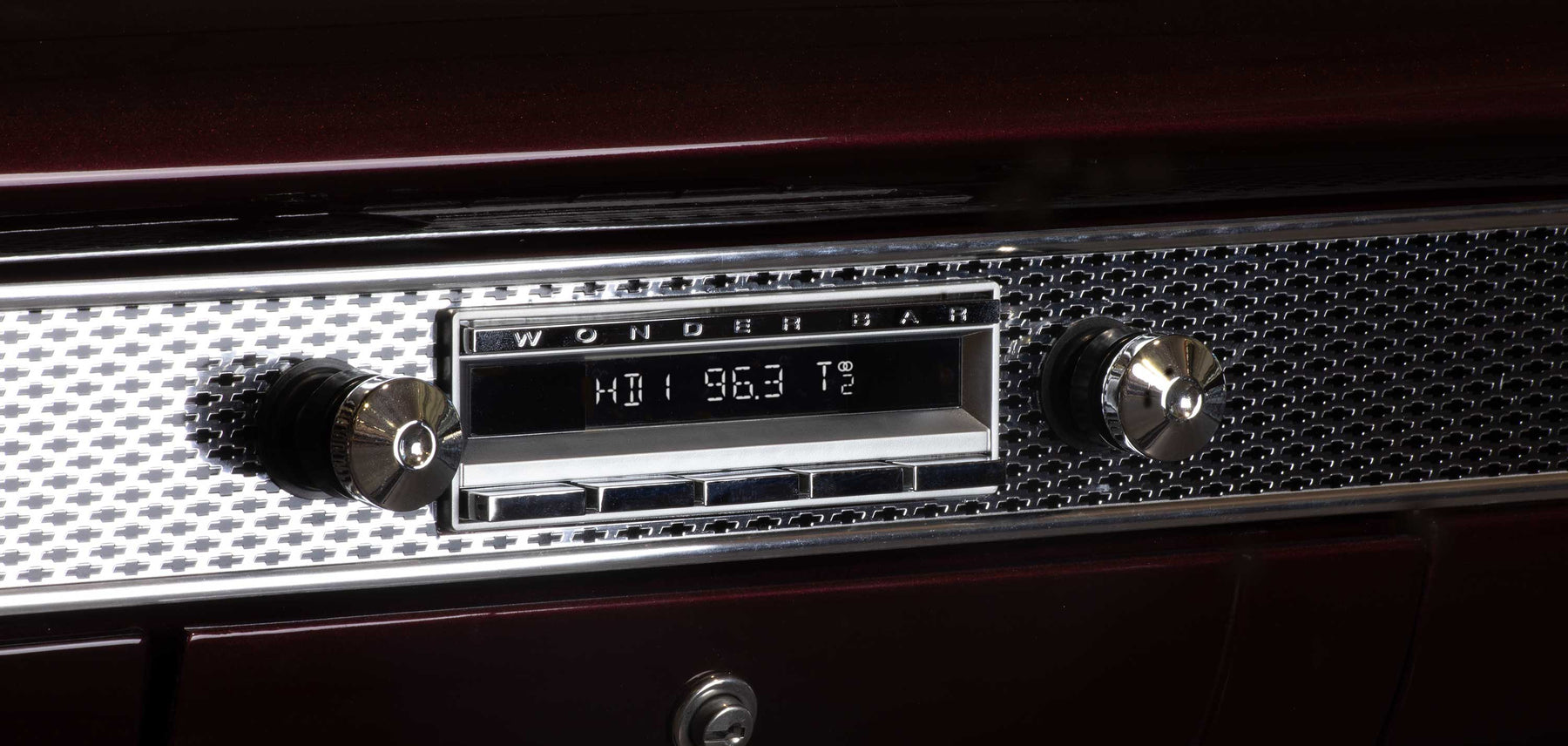

RetroSound®'s Wonder Bar® is the most technologically-advanced radio ever made for your classic. The compact size installs easily and discreetly behind the dash for a fully integrated look. Wonder Bar 1 is now available with your choice of 3 different feature sets.
Laguna (Motor 1A) features an AM/FM tuner with 30 pre-sets, a built-in 275-watt amplifier (18 watts RMS/40 watts peak x 4 channels), as well as a rear auxiliary input for portable devices such as iPod® or portable satellite radio.
- AM/FM tuner with 30 presets
- Built-in 275-watt amplifier (TrueRating™: 18 watts RMS/40 watts peak x 4 channels)
- A rear auxiliary input for portable devices
- 1-Year Warranty
- Radio body can be mounted remotely with optional extension cable
Hermosa (Motor 2) includes the features above but steps up to a 300-watt amplifier (25 watts RMS/45 watts peak x 4 channels) and features built-in Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. A 32,000 color display allows you to match the interior and dash lighting of your hot rod. Hermosa (Motor 2) includes a rear-mounted USB port for flash drives plus two standard auxiliary inputs and has front and rear RCA pre-outs that allow the ability to add external amplifiers.
- Built-in Bluetooth® connectivity
- 32,000 color display
- A rear-mounted USB port for flash drives
- Two auxiliary inputs for portable devices
- Built-in 300-watt amplifier (TrueRating™: 25 watts RMS/45 watts peak x 4 channels)
- Dual RCA pre-outs for external amplifiers
- 1-Year Warranty
Long Beach (Motor 4) includes all of the Hermosa (Motor 2) features listed above and:
- Made for iPod®/iPhone® (Compatibility with devices through streaming & USB)
- An additional USB port
- AM/FM RDS tuner with 30 pre-sets
- Dedicated subwoofer output
- 2-Year Warranty
- SiriusXM-Ready™ (SXV300 tuner sold separately)
- $70.00 rebate on purchase of SXV300 SirusXM® tuner*
- 3 months free SiriusXM® “All Access” subscription upon activation*
Wonder Bar 1 with Long Beach feature set is SiriusXM-Ready™ and connects to the SiriusXM™ SXV300 Connect Vehicle Tuner (sold separately, subscription required). The SXV300 plugs directly into the Wonder Bar 1 without the need for special adapters or cables.
Customers purchasing the SXV300 SiriusXM™ tuner are eligible for a $70.00 rebate and will receive a three-month subscription to SiriusXM™’s All Access Package upon activation.* The SiriusXM™ “All Access” package includes Howard Stern, every NFL, MLB®, and NBA game, every NASCAR® race, plus NHL® games and PGA TOUR® coverage, as well as access outside the vehicle to SiriusXM™ on smartphones and other connected devices and online at siriusxm.com.
US Residence
CA Residence
Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options.
Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. If you are not sure as to fitment, please contact us.
| Motor 1A | Motor 2 | Motor 4 | Motor 6 | |
|---|---|---|---|---|
| Compatible Faces |
Daytona |
Daytona |
Daytona |
Huntington Monterey Redondo RS RetroRadio Face Santa Cruz Wonder Bar 1 & 3 |
| SiriusXM-Ready™ | North America and Canada Only | |||
| Built-in DAB/DAB+ Tuner | Outside North America | |||
| Made for iPod® / iPhone® |  |
|
||
| Built-in Bluetooth® | |
|
|
|
| USB Port for WMA/MP3 Music Files | 1 | 2 | 2 | |
| Auxiliary Inputs | 1 | 2 | 2 | 2 |
| Display | White | 32,000 Color Display | 32,000 Color Display | 32,000 Color Display |
| Clock-Off Feature | |
|
|
|
| AM/FM RDS Tuner with 30 Pre-sets | |
|
||
| Selectable Tuner with USA/EU/Japan Frequencies | |
|
|
|
| Power Output | 18 watts x 4 | 25 watts x 4 | 25 watts x 4 | 25 watts x 4 |
| Front and Rear RCA Low Level Pre-amp Outputs | |
|
|
|
| Subwoofer Output with Variable Crossover | |
|
||
| Selectable 12/24 Hour Clock | |
|
|
|
| Non-Volatile Memory | |
|
Motor 2 Specifications
FM |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
AM (EU and US Tuning Capable) |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
General |
|
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 mA |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 25x4 watts RMS 45x4 watts Max Power |
| Output Impedance | 4-8ohm |
| Low Level Output (4 channels) | 2.85 volts |
| EROM | Non-Volatile Memory |
| AUX 1 Input (aux cable length, 8”) | >300 mV / 6 kΩ |
| AUX 2 Input (aux cable length, 8”) | >300 mV / 6 kΩ |
| USB Input (USB cable length, 40”) | 5V (USB female input) |
Motor 4 Specifications
FM |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
AM (EU and US Tuning Capable) |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
General |
|
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 mA |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 25x4 watts RMS 45x4 watts Max Power |
| Output Impedance | 4ohm |
| Low Level Output (4 channels) | 2.85 volts |
| EROM | Non-Volatile Memory |
| AUX 1 Input | >300 mV / 6 kΩ |
| AUX 2 Input | >300 mV / 6 kΩ |
| USB 1 Input | 5V (USB female input) |
| USB 2 Input | 5V (USB female input) |
