1966-67 Oldsmobile F85 Denver Radio
1966-1967 Oldsmobile F85 Denver Radio
1966-1967 Oldsmobile F85 Denver Radio

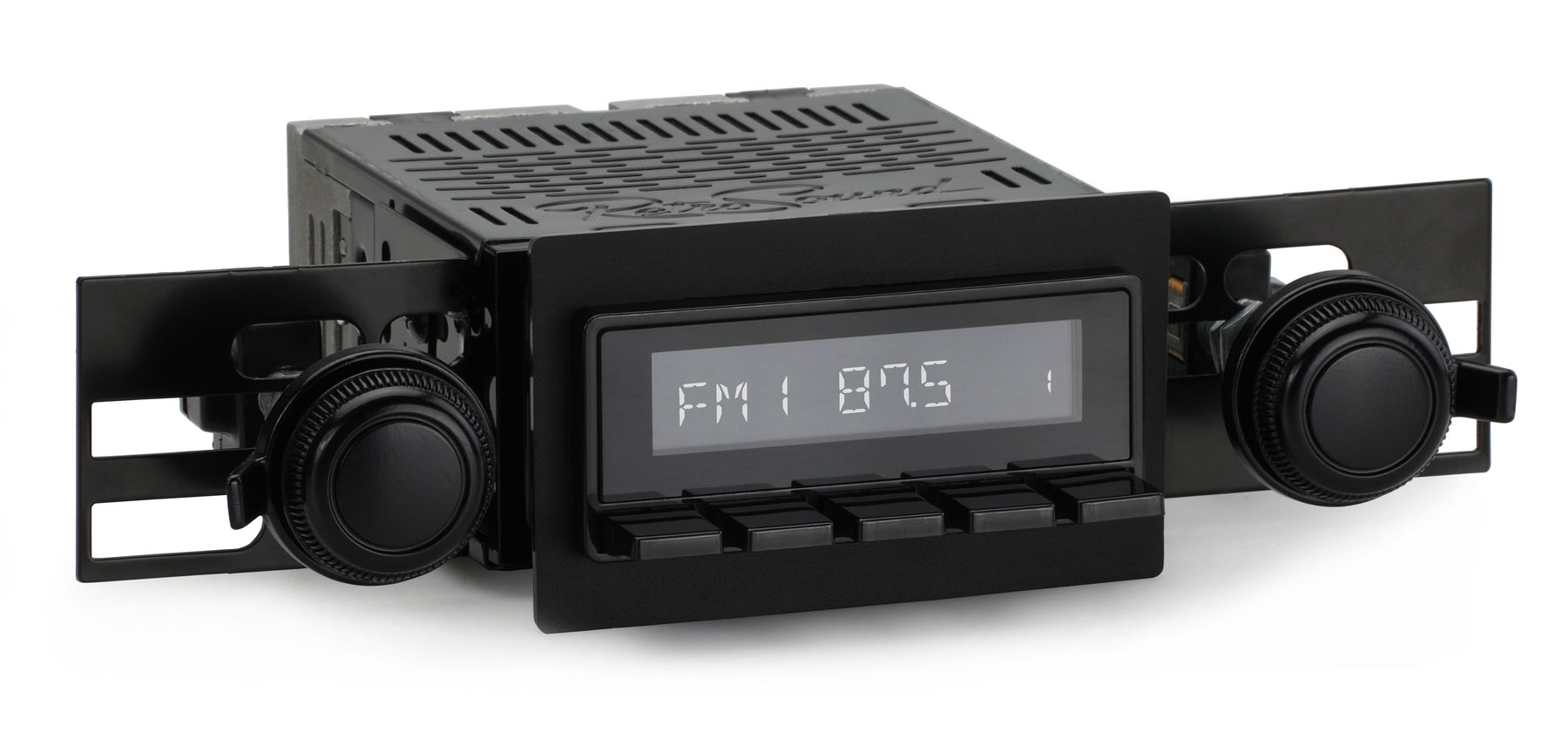

The RetroSound® Denver Radio fits seamlessly into the unique 1.5-inch by 3.5-inch opening in the dash of your 1966-67 Oldsmobile F85. The nose of the Denver has rounded corners designed to fit flush in your classic vehicle and provide a factory-like fit without the need for a faceplate or bezel. Combined with replica knobs that mimic the look and feel of your original radio, the Denver is the perfect classic car stereo for adding modern stereo features with period-correct styling to your 1966-67 Oldsmobile F85. The Denver is available with your choice of 3 different feature sets.
If the dash in your classic vehicle has been cut or modified, our Universal DIN Repair Kit can help you restore an authentic look. Check out our video on installing a RetroRadio using our Universal DIN Repair Kit.
Add more power to your RetroSound Radio with the Quadraphonic Amplifier. The Quadraphonic is a 4-channel amplifier and connects directly to your RetroSound radio delivering 45-watts RMS to all four speakers. Pair it with a RetroSound 8" powered subwoofer for a complete audio system that's a breeze to install.
Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. Please refer to product packaging for the most up to date country of origin. If you are not sure as to fitment, please contact us.
RetroSound radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.
| Motor 1B | Motor 2B | Motor 4HD | |
| FM | |||
|---|---|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5–107.9 MHz | 87.5–107.9 MHz | 87.5–107.9 MHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf | 12.5 dBf | 12.5 dBf |
| Selectivity | 75 dB @ 400 kHz | 75 dB @ 400 kHz | 75 dB @ 400 kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (Mono) | 62 dB (Stereo), 67 dB (Mono) | 62 dB (Stereo), 67 dB (Mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (Stereo), 0.5% (Mono) | 0.8% (Stereo), 0.5% (Mono) | 0.8% (Stereo), 0.5% (Mono) |
| Separation | 32 dB @ 1 kHz | 32 dB @ 1 kHz | 32 dB @ 1 kHz |
| Frequency Response | 30–16,000 Hz | 30–16,000 Hz | 30–16,000 Hz |
| AM (EU and US Tuning Capable) | |||
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530–1710 kHz | 530–1710 kHz | 530–1710 kHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| General | |||
| Dimensions (radio body) | 3.96″W × 1.98″H × 4.30″D | 3.96″W × 1.98″H × 4.30″D | 3.96″W × 1.98″H × 4.30″D |
| Power Requirements | 11.5–14.4 V | 10.5–14.4 V | 10.5–14.4 V |
| Current Consumption (during operation) | Max. 15A | Max. 15A | Max. 15A |
| Current Consumption (car off) | 3.5 mA | 3.5 mA | 3.5 mA |
| Output Power (@ 14.4V @ 4Ω @ 1% THD) | 18×4W RMS / 40×4W Max | 25×4W RMS / 45×4W Max | 25×4W RMS / 45×4W Max |
| Output Impedance | 4–8 Ω | 4–8 Ω | 4 Ω |
| AUX 1 Input (cable length 8") | >300 mV / 6 kΩ | >300 mV / 6 kΩ | |
| AUX 2 Input (cable length 8") | >300 mV / 6 kΩ | ||
| USB 1 Input (cable length 16") | 5V (USB female input) | 5V (USB female input) | |
| USB 2 Input | 5V (USB female input) | ||
| Low Level Output (4 channels) | 2.85 V | 2.85 V | |
| EROM | Non-Volatile Memory | Non-Volatile Memory | Non-Volatile Memory |
