1954 Chevrolet Truck Apache Radio

1954 Chevrolet Truck Apache Radio-RetroSound

1954 Chevrolet Truck Apache Radio

Choose a Knob
Feature set
Part Number: AP-M1A-106-129-01P-71P-SCP16

Radio Features

  • AM/FM tuner with 30 presets
  • A rear auxiliary input for portable devices
  • 1-Year Warranty
  • AM/FM tuner with 30 presets
  • Built-in Bluetooth® connectivity
  • Two auxiliary inputs for portable devices
  • A rear-mounted USB port for flash drives
  • 1-Year Warranty
  • AM/FM RDS tuner with 30 pre-sets
  • Built-in Bluetooth® connectivity
  • An additional USB port
  • Dedicated subwoofer output
  • SiriusXM-Ready™ (SXV300 tuner sold separately)
  • 2-Year Warranty
Regular price $ 219.99
/
  • In stock, ready to ship
Shipping calculated at checkout.

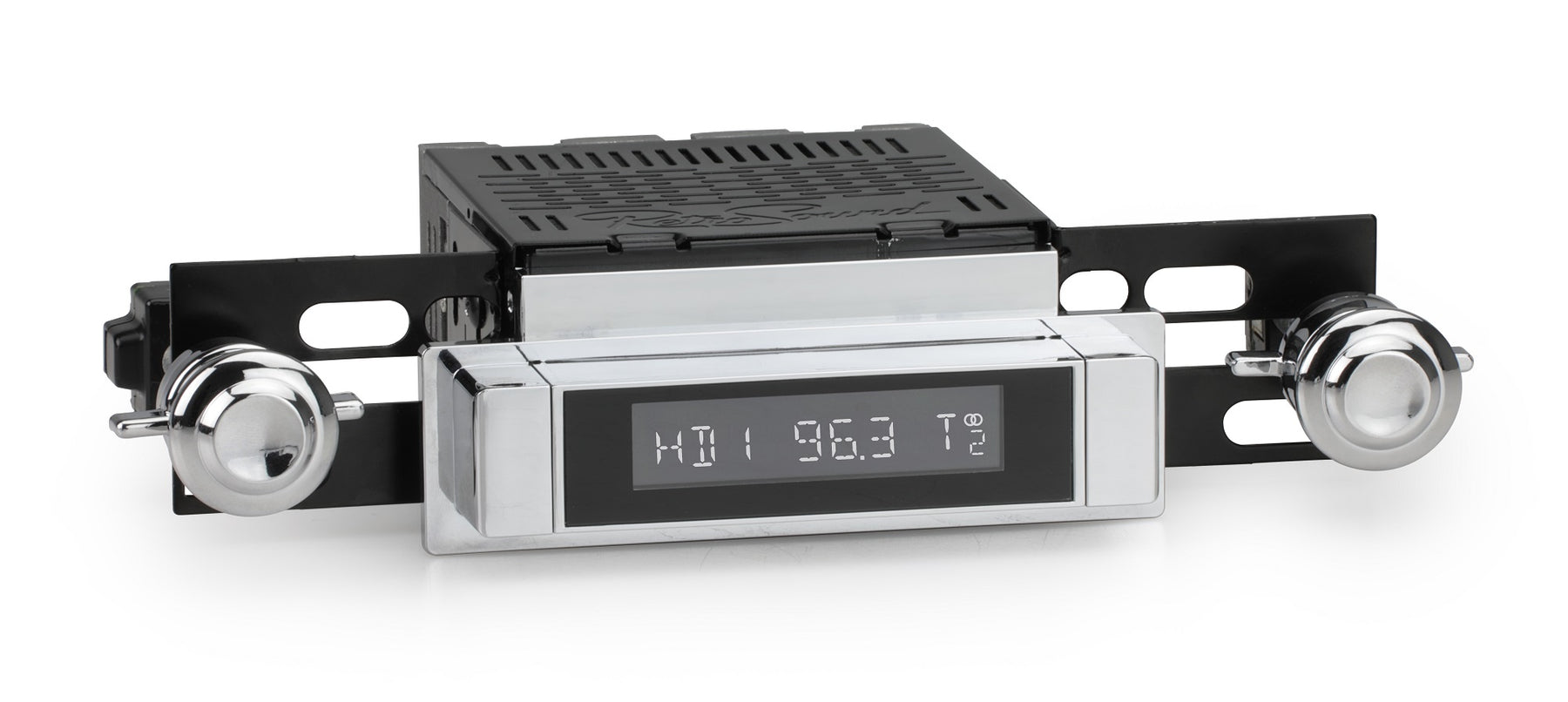

The RetroSound® Apache is the most technologically-advanced radio ever made for your vintage 1954 Chevy Truck, and also the only with built-in Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. The new Apache features a 32,000 color display to customize your radio to your truck's interior. A single USB port for flash drive plus two standard auxiliary inputs are included. The Apache has a built-in 25 watts x 4 channel power amplifier as well as front and rear RCA pre-outs, that would allow you to add external amplifiers. It mounts seamlessly into your Chevrolet/GMC truck thanks to RetroSound®'s patented InfiniMount adjustable bracket system.

  • Fits 1954 Chevy Truck
  • Built-in Bluetooth® connectivity
  • 32,000 color display
  • AM/FM world tuner
  • One rear-mounted USB port for flash drives
  • Two auxiliary inputs for portable devices
  • 25 watts x 4 channel RMS power amplifier
  • Dual RCA pre-outs for external amplifiers
  • Patented InfiniMount adjustable shaft system
  • Body can be mounted remotely for custom installation using optional extension cable
  • Selectable 12/24 hour clock
  • 1-Year Warranty
  • Works with any of our external amplifiers


Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.

Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. If you are not sure as to fitment, please contact us.

Motor 1 Specifications
FM
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS 87.5-107.9MHz
Antenna Terminal External Antenna Connector
Usable Sensitivity 12.5 dBf
Selectivity 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (mono)
Separation 32 dB @ 1kHz
Frequency Response 30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz
Antenna Terminal External Antenna Connector
General
Dimensions (radio face & push-buttons only) 3.5”W x 1.5” H x 1.05” D
Dimensions (radio body) 3.96”W x 1.98”H x 4.30”D
Power Requirements 11.5-14.4 volts
Current Consumption (during operation) Max. 15A
Current Consumption (car off) <3.5 mA
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 18x4 watts RMS 40x4 Max Power
Output Impedance 4-8ohm
AUX Input (AUX cable length, 8”) >300 mV / 6 kΩ
Motor 2 Specifications
FM
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS 87.5-107.9MHz
Antenna Terminal External Antenna Connector
Usable Sensitivity 12.5 dBf
Selectivity 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (Stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (mono)
Separation 32 dB @ 1kHz
Frequency Response 30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz
Antenna Terminal External Antenna Connector
General
Dimensions (radio body) 3.96”W x 1.98”H x 4.30”D
Power Requirements 10.5-14.4 volts
Current Consumption (during operation) Max. 15A
Current Consumption (car off) <3.5 mA
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 25x4 watts RMS 45x4 watts Max Power
Output Impedance 4-8ohm
Low Level Output (4 channels) 2.85 volts
EROM Non-Volatile Memory
AUX 1 Input (aux cable length, 8”) >300 mV / 6 kΩ
AUX 2 Input (aux cable length, 8”) >300 mV / 6 kΩ
USB Input (USB cable length, 40”) 5V (USB female input)
Motor 1A Motor 2 Motor 4 Motor 6
Compatible Faces

Apache

Daytona
Detroit
Huntington
Monterey
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3

Daytona
Detroit
Huntington
Monterey
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3

Daytona
Detroit
Huntington
Monterey
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3

Huntington
Monterey
Redondo RS
RetroRadio Face
Santa Cruz
Wonder Bar 1 & 3
SiriusXM-Ready™ North America and Canada Only
Built-in DAB/DAB+ Tuner Outside North America
Made for iPod® / iPhone® Included Included
Built-in Bluetooth® Included Included Included
USB Port for WMA/MP3 Music Files 1 2 2
Auxiliary Inputs 1 2 2 2
Display White 32,000 Color Display 32,000 Color Display 32,000 Color Display
Clock-Off Feature Included Included Included Included
AM/FM RDS Tuner with 30 Pre-sets Included Included
Selectable Tuner with USA/EU/Japan Frequencies Included Included Included Included
Power Output 18 watts x 4 25 watts x 4 25 watts x 4 25 watts x 4
Front and Rear RCA Low Level Pre-amp Outputs Included Included Included
Subwoofer Output with Variable Crossover Included Included
Selectable 12/24 Hour Clock Included Included Included Included
Non-Volatile Memory Included Included Included
