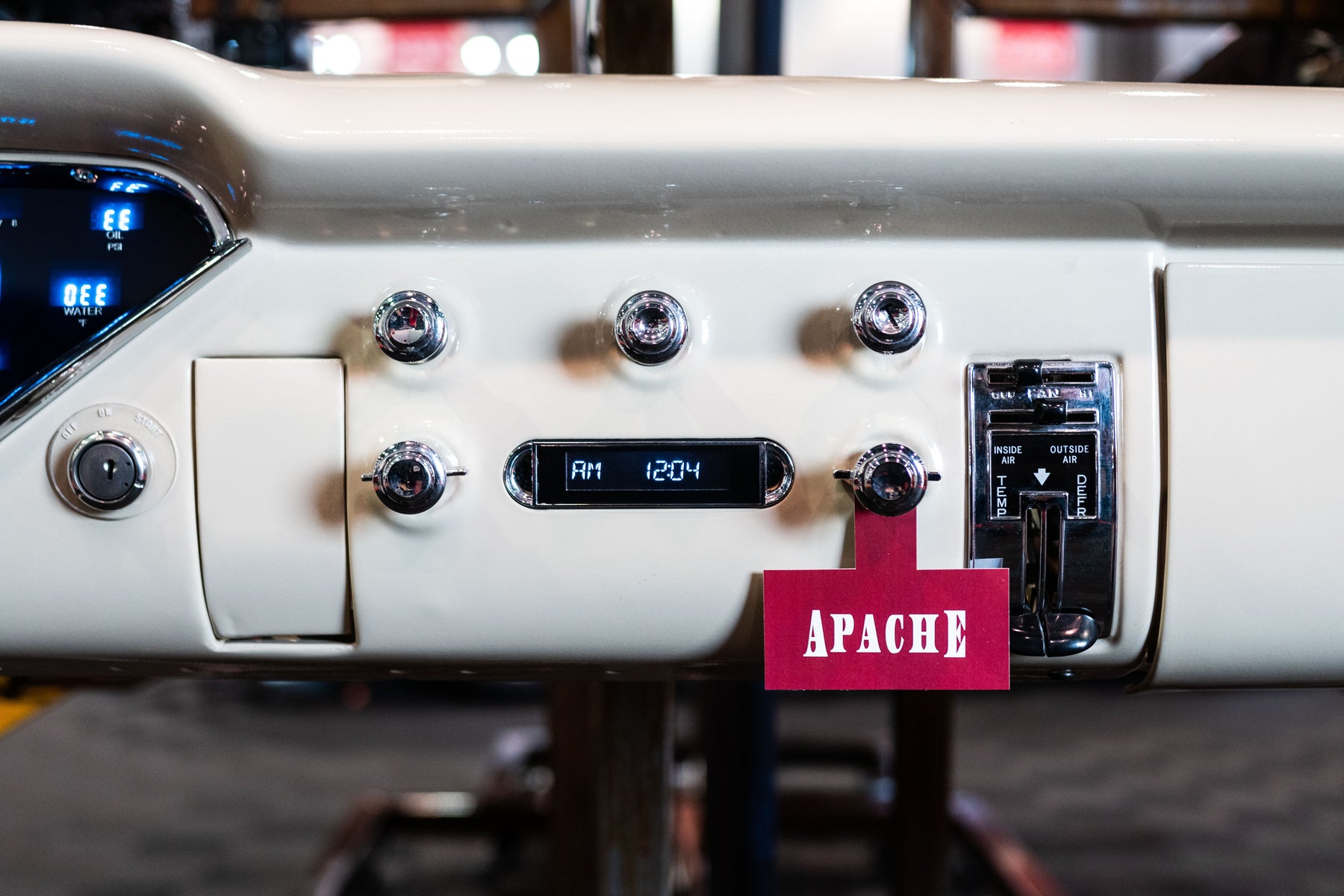

RetroSound® Apache
The RetroSound® Apache is the most technologically-advanced radio ever made for your vintage Chevy/GMC truck, and also the only with built-in Bluetooth® connectivity for hands-free phone calls and wireless audio streaming. The new Apache features a 32,000 color display to customize your radio to your truck's interior. A single USB port for flash drive plus two standard auxiliary inputs are included. The Apache has a built-in 25 watts x 4 channel power amplifier as well as front and rear RCA pre-outs, that would allow you to add external amplifiers. It mounts seamlessly into your Chevrolet/GMC truck thanks to RetroSound®'s patented InfiniMount adjustable bracket system.
- Fits Chevrolet/GMC Apache Series Trucks
- Built-in Bluetooth® connectivity
- 32,000 color display
- AM/FM world tuner
- One rear-mounted USB port for flash drives
- Two auxiliary inputs for portable devices
- 25 watts x 4 channel RMS power amplifier
- Dual RCA pre-outs for external amplifiers
- Patented InfiniMount adjustable shaft system
- Body can be mounted remotely for custom installation using optional extension cable
- Selectable 12/24 hour clock
- Works with any of our external amplifiers
| Motor 1 | Motor 2 | Motor 4 | Motor 5 | Motor 6 | Motor 7 | |
|---|---|---|---|---|---|---|
| Compatible Faces | Laguna | Daytona Detroit Hermosa Huntington Monterey Redondo Santa Cruz Wonder Bar |
Daytona Detroit Huntington Long Beach Monterey Redondo RS Santa Cruz Wonder Bar |
Redondo RT | Huntington Monterey Redondo RS San Diego Santa Cruz Wonder Bar |
Huntington Monterey Redondo RS Santa Barbara Santa Cruz Wonder Bar |
| SiriusXM-Ready™ | North America Only | |||||
| Built-in DAB/DAB+ Tuner | Outside North America | Outside North America | ||||
| Made for iPod® / iPhone® |  |
|
|
|||
| Built-in Bluetooth® | |
|
|
|
|
|
| USB Port for WMA/MP3 Music Files | 1 | 2 | 2 | 2 | 1 | |
| Auxiliary Inputs | 1 | 2 | 2 | 2 | 2 | 2 |
| Display | White | 32,000 Color Display | 32,000 Color Display | 32,000 Color Display | 32,000 Color Display | 32,000 Color Display |
| Clock-Off Feature | |
|
|
|
|
|
| AM/FM RDS Tuner with 30 Pre-sets | |
|
|
|
||
| Selectable Tuner with USA/EU/Japan Frequencies | |
|
|
|
|
|
| Power Output | 18 watts x 4 | 25 watts x 4 | 25 watts x 4 | 25 watts x 4 | 25 watts x 4 | 25 watts x 4 |
| Front and Rear RCA Low Level Pre-amp Outputs | |
|
|
|
|
|
| Subwoofer Output with Variable Crossover | |
|
|
|||
| Selectable 12/24 Hour Clock | |
|
|
|
|
|
| Non-Volatile Memory | |
|
For more information, see the user's manual, or browse our support page.
FM |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
AM (EU and US Tuning Capable) |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
General |
|
| Dimensions (radio face & push-buttons only) | 3.5”W x 1.5” H x 1.05” D |
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 mA |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 25x4 watts RMS 45x4 Max Power |
| Output Impedance | 4-8ohm |
| Low Level Output (4 channels) | 2.85 volts |
| AUX 1 Input (AUX cable length, 8”) | >300 mV / 6 kΩ |
| AUX 2 Input (AUX cable length, 8”) | >300 mV / 6 kΩ |
| USB 1 Input (USB cable length, 20”) | 5V (USB female input) |
| USB 2 Input (USB cable length, 20”) | 5V (USB female input) |
